  13. Rlay Scket, Fingr Safe/Elevator, 8 Pin, 12A

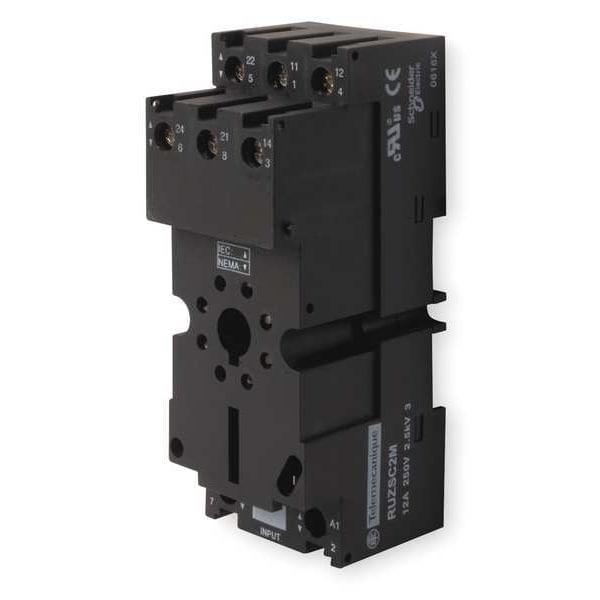

Schneider Electric Rlay Scket, Fingr Safe/Elevator, 8 Pin, 12A RUZSC2M - main

Rlay Scket, Fingr Safe/Elevator, 8 Pin, 12A

  • Mfr # RUZSC2M

  • Zoro # G2364844

product price: $8.19
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Octal
Contact Form - Relay Socket
DPDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RUZSC2M
Zoro #
G2364844
UPC #
785901646440
Country of Origin
China

Dimensions

Depth - Relay Socket
3.78 in
Length
3.78"
Height - Relay Socket
1.77 in
Width - Relay Socket
1.42 in
Depth
4.13 in
Width
1.42 in
Height
3.54 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Octal
Contact Form - Relay Socket
DPDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Box Lug
Number of Pins - Relay
8
Socket Code
A
Contact Rating - Relay Socket
12A @ 250V AC
Color
Black
Standards
CE Certified, CSA Certified, IEC 61984, UL Listed
Contact Rating
12A @ 250VAC
Mounting
Din Rail
Socket Style
Octal
Socket Type
Elevator, Finger Safe
Voltage
250VAC
Item
Relay Socket
Terminals
Box Lug Separate
Status Indicator
None
Number of Pins
8
Contact Form
DPDT
Minimum Operating Temperature
-40 Degrees F
Weight
3.36 oz
Number of Terminals
8
Maximum Operating Temperature
131 Degrees F
Contact Terminal Arrangement
Separate
Contact Rating (AC)
12 A @ 250V
Current Rating
12 A
Mounting Style
DIN Rail
Base Style
Octal
Electrical Connection
Screw
Pin Shape
Round
IP Rating
IP20
Compatible Relays
Harmony(TM) RUM Series
Ip Degree Of Protection
IP20 conforming to EN/IEC 60529
Pollution Degree
3
Overvoltage Category
III
[Ue] Rated Operational Voltage
< 250 V
Ambient Air Temperature For Operation
-40-55°C
Product Or Component Type
socket
Ambient Air Temperature For Storage
-40-85°C
Product Compatibility
plug-in relay RUM 2 C/O
Connections - Terminals
connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Dielectric Strength
2500 V
[Ith] Conventional Free Air Thermal Current
12A
Marking
CE
Device Short Name
RUZ
Shape Of Pin
cylindrical
Product Certifications
UL || CSA
Fixing Mode
by screw panel) || clip-on 35 mm symmetrical DIN rail)
[Uimp] Rated Impulse Withstand Voltage
4 kV
Tightening Torque
< 1 N.m M3.5

Description

Relay Socket, Base Style Octal, Contact Form DPDT, Current Rating 12 A, Electrical Connection Screw, Flat Pin Width Not Applicable, Number of Pins 8, Number of Terminals 8, Pin Shape Round, Socket Type Elevator, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail, Color Black, Compatible Relays Harmony(TM) RUM Series, Contact Rating (AC) 12 A @ 250V, Depth 4.13 in, Height 3.54 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F
