Schneider Electric Rlay Sckt, Elvatr, Squre, 8 Pin, Scrw Clamp 70-782EL8-1 - main

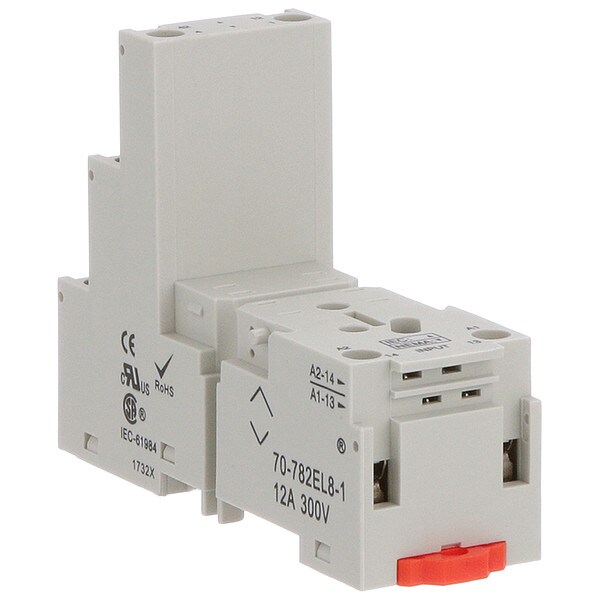

Rlay Sckt, Elvatr, Squre, 8 Pin, Scrw Clamp

  • Mfr # 70-782EL8-1

  • Zoro # G3490846

product price:  $7.99
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
DPDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70-782EL8-1
Zoro #
G3490846
UPC #
-
Country of Origin
China

Dimensions

Depth
3.11 in
Length
3.34"
Depth - Relay Socket
3.34 in
Width - Relay Socket
1.06 in
Height - Relay Socket
2.4 in
Width
1.06 in
Height
2.4 in
Flat Pin Width
0.09 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
DPDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Screw Clamp
Number of Pins - Relay
8
Socket Code
K
Contact Rating - Relay Socket
12A @ 300V AC
Color
White
Socket Style
Square
Socket Type
Standard, Finger Safe
Contact Rating
12A @ 300VAC
Item
Relay Socket
Terminals
Screw Clamp
Mounting
Din Rail
Number of Pins
8
Voltage
300VAC
Status Indicator
None
Standards
CE Certified, CSA Certified, UL Listed
Maximum Operating Temperature
131 Degrees F
Contact Terminal Arrangement
Separate
IP Rating
IP20
Number of Terminals
8
Base Style
Square
Minimum Operating Temperature
-40 Degrees F
Electrical Connection
Screw Clamp
Weight
1.62 oz
Contact Form
DPDT
Current Rating
12 A
Pin Shape
Flat
Contact Rating (AC)
12 A @ 300V
Compatible Relays
792 Series
Mounting Style
DIN Rail
[Ue] rated operational voltage
300 V
Product Type
Socket
Product Range
Legacy
Ambient Air Temperature for Storage
-40 to 221°F (-40 to 105°C)
Tightening Torque
< 0.8 N.m
Shape of Screw Head
Combination roundhead
Connections Terminals
lift terminals flexible; lift terminals solid
Product Compatibility
relay 792XBX; diode 70-BSMD; signalling device 70-BSMLG; suppressor module 70-BSMM; jumper wire 16-782CBJ-1
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Fixing Mode
By screw M3.5, M3.5 panel; Clip-on 35 mm symmetrical DIN rail
Flame Retardance
UL94-V0
Product Certifications
UL; CSA; CE
Contact Composition
2 NO + 2 NC

Description

Relay Socket, Base Style Square, Contact Form DPDT, Current Rating 12 A, Electrical Connection Screw Clamp, Flat Pin Width 0.09 in, Number of Pins 8, Number of Terminals 8, Pin Shape Flat, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail, Color White, Compatible Relays 792 Series, Contact Rating (AC) 12 A @ 300V, Depth 3.11 in, Height 2.4 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F, Minimum Operating Temperature -40 Degrees F
