  11. Rly Scket, Standard, Square, 8 Pin, DIN Rail
Shop All Relay Sockets
Schneider Electric

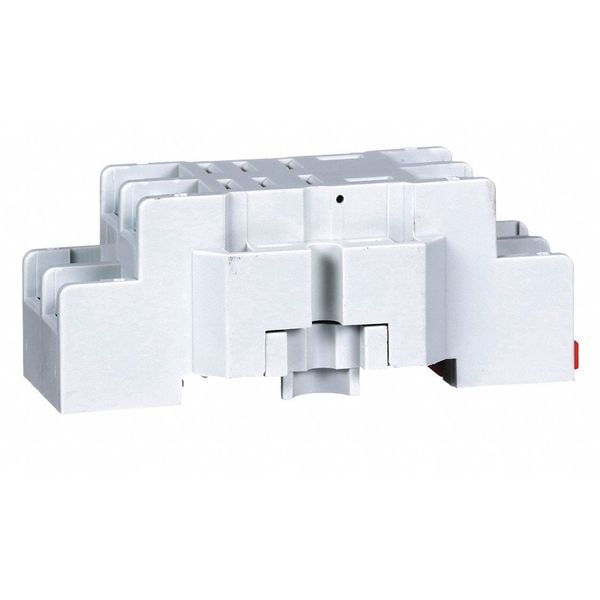

Rly Scket, Standard, Square, 8 Pin, DIN Rail

product price: $26.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Socket Type - Relay Elevator
  • Base Style - Relay Socket Square
  • Contact Form - Relay Socket DPDT
  • Mounting - Relay DIN Rail, Surface
  • Electrical Connection - Relay Socket Screw Clamp
See all product information

Product Information

Dimensions

Height - Relay Socket 1 in
Length 2.75"
Depth - Relay Socket 2.72 in
Width 1.18 in
Depth 0.99 in
Width - Relay Socket 1.18 in
Height 2.72 in
Flat Pin Width 0.18 in

Details

Item - Relay Relay Socket
Socket Type - Relay Elevator
Base Style - Relay Socket Square
Contact Form - Relay Socket DPDT
Mounting - Relay DIN Rail, Surface
Electrical Connection - Relay Socket Screw Clamp
Number of Pins - Relay 8
Socket Code D
Contact Rating - Relay Socket 10A @ 300V AC
Color White
Socket Type Elevator
Terminals Screw Clamp
Standards CE Certified, CSA Certified, UL Recognized
Number of Pins 8
Status Indicator None
Mounting DIN Rail/Surface
Item Relay Socket
Contact Rating 10A @ 300VAC
Socket Style Square
Voltage 250VAC
Finger Safe No
Mounting Style DIN Rail & Surface
Base Style Square
Electrical Connection Screw Clamp
Electrical Connection Type Screw
Contact Form DPDT
Contact Rating (AC) 10 A @ 300V
Socket Code Configurator Square / 8 / 0.18 in
Socket Mounting Style DIN-Rail & Surface
Socket Design Elevator
Current Rating 10 A
Number of Terminals 8
Pin Shape Flat
Compatible Relays Square D 8501R Miniature Series
Pin Number 8
Mounting Support panel || DIN rail
Line Rated Current 10 A 300 V AC
Product Certifications UL Recognized || CSA || CE
Shape Of Pin spade
Product Or Component Type Relay Socket
Certifications UL Recognized; CSA; CE
Mounting Type Panel; DIN rail

Description

Relay Socket, Base Style Square, Contact Form DPDT, Current Rating 10 A, Electrical Connection Screw Clamp, Flat Pin Width 0.18 in, Number of Pins 8, Number of Terminals 8, Pin Shape Flat, Socket Type Elevator, Mounting Style DIN Rail & Surface, Color White, Compatible Relays Square D 8501R Miniature Series, Contact Rating (AC) 10 A @ 300V, Depth 0.99 in, Height 2.72 in, Standards CE Certified, CSA Certified, UL Recognized, Status Indicator None, Width 1.18 in
