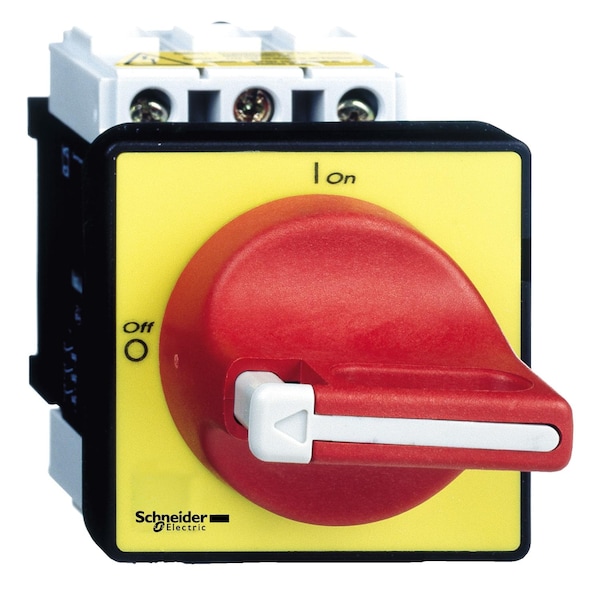

Switch disconnector, TeSys Control, for ON/emergency stop, 20A(V01), 22.5 fixing, for mounting on door

  • Mfr # VCD01

  • Zoro # G100428183

product price:
$
142.99
/ea
Free Shipping & Returns

Key Features

Standards
IEC 60947-3
Width
60 mm
Height
74 mm
Rated Conditional Short-Circuit Current
10 kA 400 V 20 A aM || 10 kA 400 V 20 A gG
Poles Description
3P
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VCD01
Zoro #
G100428183
UPC #
-
Country of Origin
United States
Item
TeSys Vario - emergency stop switch disc
Standards
IEC 60947-3
Rated Conditional Short-Circuit Current
10 kA 400 V 20 A aM || 10 kA 400 V 20 A gG
Poles Description
3P
Network Type
DC || AC
Product Name
TeSys VARIO
Device Short Name
VCD
Making Capacity
200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A
[Icm] Rated Short-Circuit Making Capacity
1 kA 400 V at Ipeak
Rotary Handle Padlocking
1 to 3 padlocks 4-8 mm
Rated Operational Power In W
11 kW 690 V AC-23A) || 3 kW 230...240 V AC-3) || 4 kW 400...415 V AC-3) || 5.5 kW 500 V AC-3) || 7.5 kW 500 V AC-23A) || 7.5 kW 690 V AC-3) || 4 kW 230...240 V AC-23A) || 5.5 kW 400...415 V AC-23A)
[Icw] Rated Short-Time Withstand Current
300 A 400 V 1 s
Device Composition
switch || handle
Fixing Mode
hole 22.5 mm handle
Ip Degree Of Protection
IP20 conforming to IEC 60529 || IP65
[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
Contacts Type And Composition
3 NO
Control Type
rotary handle
Performance Level
high performance
[Ie] Rated Operational Current
11 A AC-23 Ue: 400 V
Handle Front Plate Colour
yellow
[Uimp] Rated Impulse Withstand Voltage
8 kV
Rotary Handle Mounting Style
direct
Ambient Air Temperature For Operation
-20-50°C
Product Certifications
GL || UL || CSA || CCC || UKCA
Mounting Support
handle door || switch door
Product Or Component Type
emergency stop switch disconnector
Protective Treatment
TC
Tightening Torque
power circuit 2.1-2.1 N.m screw clamp terminals
Mechanical Robustness
vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Connections - Terminals
power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 6-6 mm² flexible - with cable end
[Ithe] Conventional Enclosed Thermal Current
16 A
Range
TeSys
[Ith] Conventional Free Air Thermal Current
20 A
Breaking Capacity
200 A 400 V AC-21A) || 200 A 400 V AC-22A) || 200 A 400 V AC-23A)
Compatibility Code
main switch disconnector
Handle Colour
red
Suitability For Isolation
yes
Fire Resistance
960°C IEC 60695-2-1
Intermittent Duty Class
30
Marking
0 - 1
Mechanical Durability
100000 cycles
Electrical Durability
100000 cycles AC-21 || 30000 cycles DC-1...5

Description

TeSys Vario - emergency stop switch disc
