  13. Rly Sockt, Stndrd, Squre, 8 Pin, Scrw Clamp

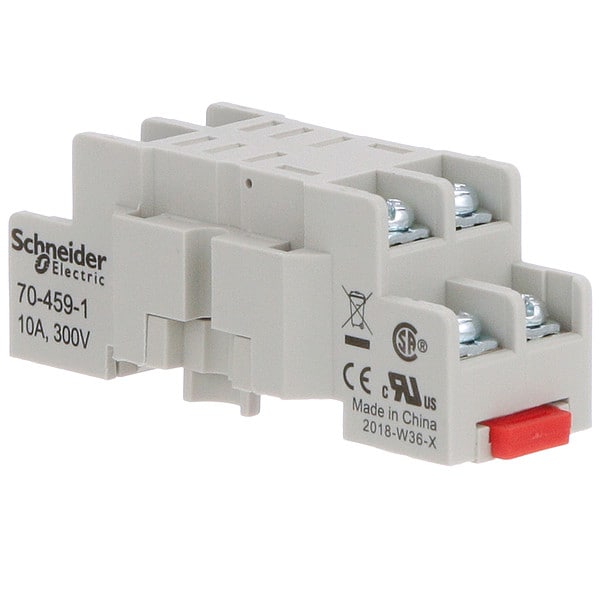

Schneider Electric Rly Sockt, Stndrd, Squre, 8 Pin, Scrw Clamp 70-459-1 - main

Rly Sockt, Stndrd, Squre, 8 Pin, Scrw Clamp

  • Mfr # 70-459-1

  • Zoro # G1656015

product price: $8.85
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator
Base Style - Relay Socket
Square
Contact Form - Relay Socket
DPDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70-459-1
Zoro #
G1656015
UPC #
-
Country of Origin
China

Dimensions

Depth
2.24 in
Length
2.73"
Width
1.14 in
Depth - Relay Socket
2.73 in
Width - Relay Socket
1.17 in
Height - Relay Socket
1.02 in
Height
1.02 in
Flat Pin Width
0.187 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator
Base Style - Relay Socket
Square
Contact Form - Relay Socket
DPDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Screw Clamp
Number of Pins - Relay
8
Socket Code
J
Contact Rating - Relay Socket
10A @ 300V AC
Color
White
Number of Pins
8
Mounting
Din Rail
Standards
CE Certified, CSA Certified, UL Listed
Voltage
300VAC
Terminals
Screw Clamp
Status Indicator
None
Socket Type
Standard, Finger Safe
Item
Relay Socket
Socket Style
Square
Contact Rating
10A @ 300VAC
Current Rating
10 A
Pin Shape
Flat
Compatible Relays
782 Series
Electrical Connection
Screw Clamp
IP Rating
IP20
Number of Terminals
8
Contact Terminal Arrangement
Mixed
Minimum Operating Temperature
-40 Degrees F
Contact Form
DPDT
Contact Rating (AC)
10 A @ 300V
Mounting Style
DIN Rail
Weight
1.76 oz
Maximum Operating Temperature
131 Degrees F
Base Style
Square
Connections Terminals
Panel screw clamp terminals, clamping connection capacity:2 x 2.5...2 x 4 mm², AWG 14...AWG 12 solid for output; Panel screw clamp terminals, clamping connection capacity:2 x 2.5...2 x 4 mm², AWG 14...AWG 12 stranded for output
Tightening Torque
< 1 N.m
Fixing Mode
By screw M3.5, M3.5 panel; By screws, M3 panel
Ambient Air Temperature for Storage
-40 to 221°F (-40 to 105°C)
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
[Ue] rated operational voltage
300 V
Contact Composition
2 NO + 2 NC
Shape of Screw Head
Combination roundhead
Flame Retardance
UL94-V0
Product Range
Legacy
Product Certifications
UL; CSA; CE
Product Type
Socket
Product Compatibility
relay 782XBX

Description

Legacy general purpose relay series accessory , optional socket for 782R series relays with DPDT configuration contacts rated 10A at 300V. Screw clamping connect terminals 8 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
