Shop SCHNEIDER ELECTRIC

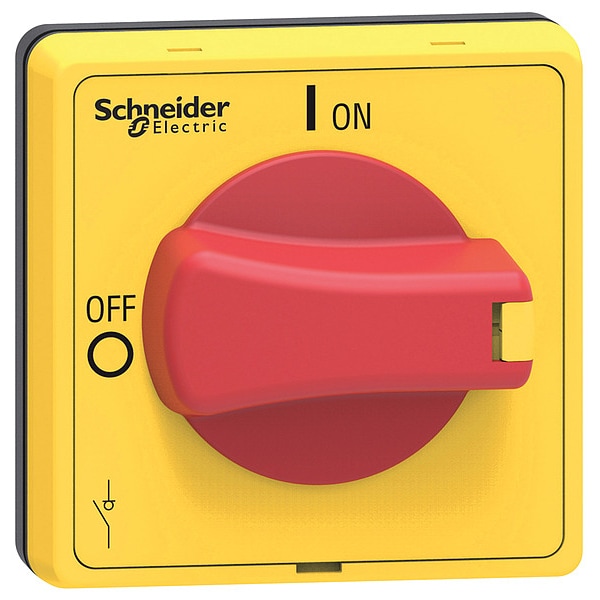

Rotary Handle, Red/Yellow, NEMA1/12/3R/4/4X

  • Mfr # VLSH4S5R
  • Zoro # G3546847
product price:
$
48.55
/ea

Key Features

Description/Special Features
Mercury Free, RoHS Exemption Information, Toxic Heavy Metal Free
Includes
Padlock
For Use With
TeSys VLS Series
Height
1.89 in
Depth
1.54 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VLSH4S5R
Zoro #
G3546847
UPC #
785901576655
Country of Origin
Korea, Republic of

Dimensions

Height
1.89 in
Depth
1.54 in
Width
1.89 in
For Disconnect Switch Size
100 A, 125 A, 16 A, 25 A, 32 A, 40 A, 63 A, 80 A
Base Dimension
48 x 48 mm

Details

Item
Rotary Handle
Description/Special Features
Mercury Free, RoHS Exemption Information, Toxic Heavy Metal Free
Includes
Padlock
For Use With
TeSys VLS Series
Features
Opening for 5 mm (0.2 in) Shaft Width, Protruding Selector
Standards
cULus Listed, Meets IEC 60947-3
Compatible with Manufacturer Model Number
VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S
NEMA Enclosure Rating
1, 12, 3R, 4, 4X
Product Type
Replacement Handle
Color
Red (Handle Color); Yellow (Handle Front Plate Color)
Environment
Indoor/Outdoor
Compatible Manufacturer Part Number
VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S
Compatible Manufacturer Model Number
VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S
For Use With Mfr. Model Number
VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S
Ip Degree Of Protection
IP65
Handle Front Plate Colour
yellow
Range Compatibility
TeSys (TeSys VARIO LS) VLS3P
Rotary Handle Padlocking
1 padlock 4-8 mm
Handle Colour
red
Marking
0 - 1
Tightening Torque
2.3 N.m
Product Or Component Type
rotary handle
Nema Degree Of Protection
NEMA 1 || NEMA 2 UL 508 || NEMA 3R UL 508 || NEMA 4 UL 508 || NEMA 4X UL 508 || NEMA 12 UL 508 || NEMA 12K UL 508
Device Short Name
VLSH
Fixing Mode
by 4 screws
Compatible with Manufacturer Model No.
VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S
Compatible with Mfr. Model No.
VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S
For Use with Mfr Model Number
VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S
Compatible Pump Manufacturer Part Number
VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S
Compatible Mfr. Model Number
VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S
For Manufacturer Part Number
VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S
Compatible with Mfr. Model Number
VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S

Description

Rotary Handle, Color Red (Handle Color); Yellow (Handle Front Plate Color), Compatible Grainger Part Number 55WT49, 55WT52, 55WT54, 55WT56, 55WT57, 55WT60, Compatible with Manufacturer Model Number VLS1P040D1E, VLS1P040R1S, VLS1P063R1S, VLS1P063R2S, VLS1P080R2S, VLS1P100R2S, VLS1P125D2E, VLS1P125R2S, Depth 1.54 in, Environment Indoor/Outdoor, Features Opening for 5 mm (0.2 in) Shaft Width, Protruding Selector, For Disconnect Switch Size 100 A, 125 A, 16 A, 25 A, 32 A, 40 A, 63 A, 80 A

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
