CSA, EN 1760-1/ISO 13856-1, EN 574/ISO 13851, EN 954-1/EN/ISO 13849-1, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 61496-1, IEC 61508, TUV, UL Listed
Input Power
24 V DC
Response Time
30 msec
Safety Module Name
XPSMC
Minimum Output Current
10 mA relay output
Associated Fuse Rating
16 A gL power supply || 4 A gL relay output || 6 A fast blow relay output
Ip Degree Of Protection
IP20 conforming to EN/IEC 60529
[Ui] Rated Insulation Voltage
300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1
[Us] Rated Supply Voltage
24 V DC - 20 to 20 %
Maximum Line Resistance
100 Ohm <2000 m
Output Thermal Current
4 A for both outputs simultaneously || 6 A for 1 output and 2 A for the other relay output
Minimum Output Voltage
17 V relay output
Safety Use Category
category 4 maximum EN 954-1/EN/ISO 13849-1 || PLE maximum EN/ISO 13849-1 || SIL 3 maximum IEC 61508
Local Signalling
46 LEDs
Product Certifications
CSA || UL || TUV
Type Of Start
configurable
Method Of Access
slave
Mounting Support
mounting plate
[Ith] Conventional Free Air Thermal Current
16 A relay output || 6.5 A static output circuit
Power Consumption In W
12 W
Ambient Air Temperature For Operation
-10-55 °C
Function Of Module
dynamic monitoring of hydraulic valves on linear presses || monitoring safety stop at top dead centre on eccentric press || muting function of light curtains || position selector || safety mat monitoring || safety time delays || shaft/chain breaking monitor || zero speed detection || light curtain monitoring category 4 EN/IEC 61496 || two-hand control category 3 EN 574/ISO 13851 || eccentric press || emergency stop monitoring, with or without time delay, 1 or 2-channel wiring || enabling switch monitoring, 2 or 3 contacts || foot switch monitoring || guard monitoring for injection presses and blowing machines || guard monitoring with 1 or 2 limit switches || hydraulic press || magnetic switch monitoring
Synchronisation Time Between Inputs
depending on configuration selected
[Uc] Control Circuit Voltage
28.8 V
Input Protection Type
external fuse 16 A
Breaking Capacity
180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output, 2 A 24 V static output circuit || 1.5 A 24 V DC-13)50 ms relay output
Data Format
1 start bit/8 data bits || 1 stop bit even or odd || 2 stop bits without parity || RTU (Remote Terminal Unit) mode
Safety Level
can reach PL e/category 4 EN 954-1/EN/ISO 13849-1 || can reach SIL 3 IEC 61508
Parity
even Modbus || no Modbus || odd Modbus
Number Of Addresses
1-247 Modbus
Communication Port Protocol
Modbus 1 RJ45, serial link 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps
Supported Modbus Function
01 8-bit output data/32-bit input data || 02 32-bit input data/8-bit output data || 03 information and errors
Product Or Component Type
configurable safety controller
Ambient Air Temperature For Storage
-25-85 °C
[Uimp] Rated Impulse Withstand Voltage
4 kV III IEC 60647-5-1, DIN VDE 0110 part 1
Compatible with Series
XPCMC
Operating Temperature - Maximum
131 Degrees F
Operating Temperature - Minimum
14 Degrees F
Description

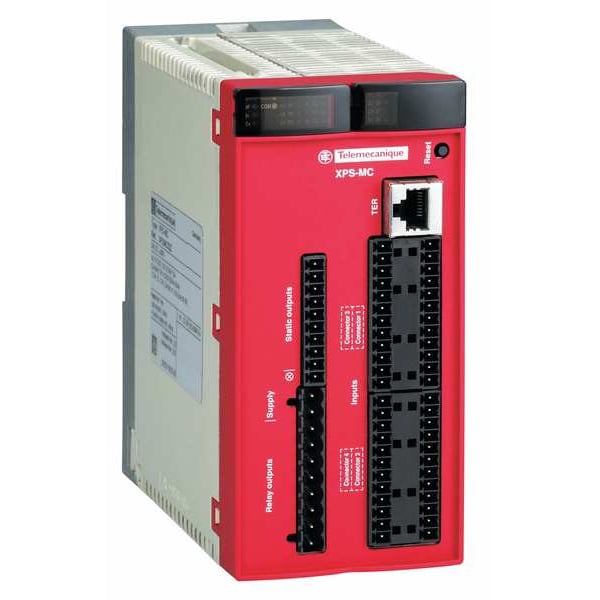

Safety Controller, Number of Inputs 32, Safety Output Ratings 1.5 A @ 24V DC, 2 A @ 24V AC, Safety Output Configuration 4NO, Response Time 30 msec, Mounting Surface or Din Rail, Enclosure Material Plastic, IP Rating IP20, Input Power 24 V DC, Height 5.96 in, Width 2.91 in, Depth 6.02 in, Operating Temp. -10 to 55 Degrees C, Features Configurable, Monitoring Multiple Safety Functions
