  6. Safety Monitoring Relay, 24VDC, 5.0W

This item is Discontinued.

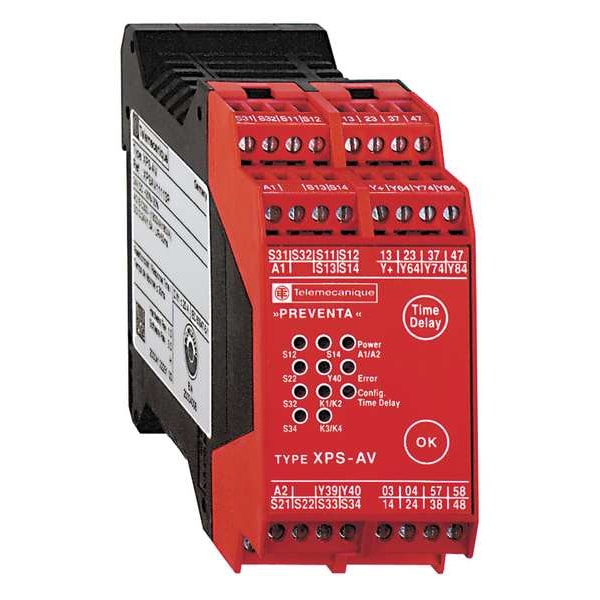

Schneider Electric Safety Monitoring Relay, 24VDC, 5.0W XPSAV11113P

Safety Monitoring Relay, 24VDC, 5.0W (Discontinued)

  • Mfr # XPSAV11113P
  • Zoro # G3001187
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XPSAV11113P
Zoro #
G3001187
UPC #
785901343240
Country of Origin
France

Dimensions

Width
1.77"
Depth
4.49"
Body Depth - Relay
4.49 in
Height
3.90"
Overall Height - Relay
3.9 in
Body Width - Relay
1.77 in
Body Height - Relay
3.9 in
Body Width
1.77 in
Body Depth
4.49 in
Overall Depth
3.9 in
Body Height
3.9 in

Details

Item - Relay
Safety Monitoring Relay
Input or Control Voltage
24 V DC
AC Contact Rating - Relay
2.50A @ 300 V
DC Contact Rating - Relay
1.50A @ 24 V
Mounting - Relay
DIN Rail
Output Switch Configuration - Relay
(3) Solid State, (3) SPST-NO Instantaneous, (3) SPST-NO Timed
Input Power Consumption (Burden)
5 W
Number of Inputs - Relay
3
Use With - Relay
E Stop
Delay Time - Relay
Adjustable 0.00 to 300.00 sec
Mounting
DIN Rail
Response Time - Safety Monitoring Relay
Less Than 30 msec
Number of Pins - Relay
30
Input or Control Voltage Range
24VDC
Number of Inputs - Safety Monitoring Relay
3
Output Switch Configuration - Safety Monitoring Relay
(3) SPST-NO Instantaneous, (3) SPST-NO Timed, (3) Solid State
Electrical Connection - Safety Monitoring Relay
Captive Screw, Terminal Block Removable
Item
Safety Monitoring Relay
Coil Volts
24VDC
Input Current
Less Than200mA
Standards
BIA, CSA, UL
Power Consumption
5 W
Delay Time - Safety Monitoring Relay
Adjustable 0.00 to 300.00 sec.
Input Voltage
24V DC
Response Time
30 msec
Contact Load Rating
2.5A
Environmental Protection
IP40
Contact Configuration
3NO Instantaneous/3NO Timed/3SS
Use With - Safety Monitoring Relay
E Stop
For Use With
E Stop
Response Time - Relay
Less Than 30 msec
Electrical Connection - Relay
Captive Screw, Terminal Block Removable
Input Power
24VDC
IP Rating
IP40
Number of Inputs
3
Electrical Connection
Captive Screw
Mounting Style
DIN Rail
Output Switch Configuration
(3) Solid State, (3) SPST-NO Instantaneous, (3) SPST-NO Timed
Contact Rating (AC)
2.50A @ 300V
Delay Time
Adjustable 0.00 to 300.00 sec
Contact Rating (DC)
1.50A @ 24V
Number of Pins
30

Description

Safety Monitoring Relay, Delay Time Adjustable 0.00 to 300.00 sec, Electrical Connection Captive Screw, IP Rating IP40, Input Voltage 24V DC, Mounting Style DIN Rail, Number of Inputs 3, Number of Pins 30, Output Switch Configuration (3) Solid State, (3) SPST-NO Instantaneous, (3) SPST-NO Timed, Response Time 30 msec, Standards BIA, CSA, UL, Contact Rating (AC) 2.50A @ 300V, Contact Rating (DC) 1.50A @ 24V, For Use With E Stop, Body Depth 4.49 in, Body Height 3.9 in, Body Width 1.77 in
