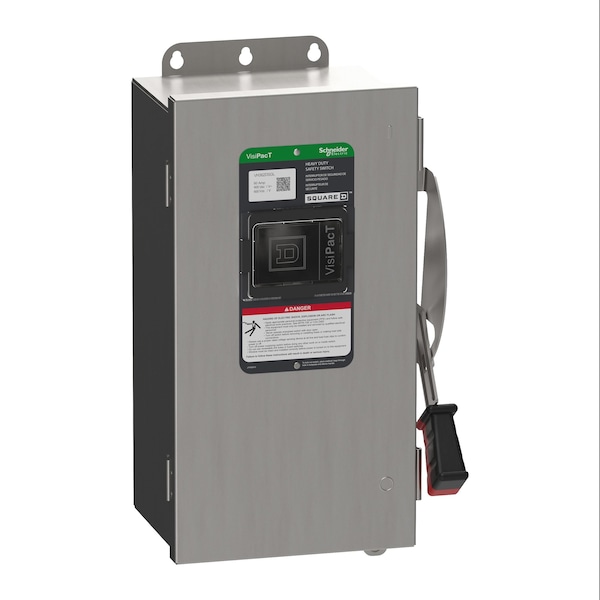

Schneider Electric Safety Switch, Fusible, 3PST, Three Phase, NEMA 4X, Indoor/Outdoor, 18-8 Stainless Steel VH362DSGL - main

Safety Switch, Fusible, 3PST, Three Phase, NEMA 4X, Indoor/Outdoor, 18-8 Stainless Steel

  • Mfr # VH362DSGL

  • Zoro # G809691338

product price:  $2,315.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Fusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
For Fuse Class
Class H, Class K
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VH362DSGL
Zoro #
G809691338
UPC #
3606485894072
Country of Origin
Korea, Republic of

Dimensions

Width
8 7/8 in
Depth
7 1/4 in
Height
16 7/8 in
Maximum Enclosure Depth
7.26 in

Details

Item
Safety Switch
Protection Method
Fusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
For Fuse Class
Class H, Class K
Environment
Indoor/Outdoor
Enclosure Type
NEMA 4X
Voltage
600 V
Handle Color
Black/Red
Housing Material
18-8 Stainless Steel
Standards
EU RoHS, UL Listed file E2875
Number of Poles
3
Number of Wires
3
Amps
60 A
Duty
Heavy Duty
Neutral Assembly Included
No
IP Rating
Not Rated
Includes
Dual Cover Interlock
NEMA Enclosure Rating
4X
Includes Interlocked Receptacle
Yes
Features
Quick Make/Break Operating Mechanism, Viewing Window
Mounting Style
Surface Mount
Number of Locks
2
Resistance Properties
Corrosion-Resistant
Horsepower @ 600V AC
50 hp
Series
F
Horsepower @ 480V AC
30 hp
Fuse Kit (Class R)
Mfr. No. RFK03H
Horsepower @ 240V AC
Not Rated
Compatible with Manufacturer Model Number
RFK03H
Compatible Manufacturer Part Number
RFK03H
Compatible Manufacturer Model Number
RFK03H
For Use With Mfr. Model Number
RFK03H
Series Name
heavy duty
Tightening Torque
50-50 lbf.in (AWG 3) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 50-50 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Product Certifications
UL listed file E2875
Device Application
heavy application
Disconnector Device Type
fusible disconnect
Wiring Configuration
3-wire
Device Composition
field installed kit available
Short-Circuit Current
10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Product Or Component Type
Single Throw Safety Switch
Electrical Connection
lugs
Device Mounting
surface
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Compatible with Manufacturer Model No.
RFK03H
Compatible with Mfr. Model No.
RFK03H
For Use with Mfr Model Number
RFK03H
Compatible Pump Manufacturer Part Number
RFK03H
Compatible Mfr. Model Number
RFK03H
For Manufacturer Part Number
RFK03H

Description

Safety Switch, Compatible with Manufacturer Model Number RFK03H, Contact Form 3PST, Current Rating 60 A, Depth 7 1/4 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Class H, Class K, Fuse Kit (Class R) Mfr. No. RFK03H, Handle Color Black/Red, Height 16 7/8 in, Horsepower @ 240V AC Not Rated, Horsepower @ 480V AC 30 hp, Horsepower @ 600V AC 50 hp, Housing Material 304 Stainless Steel
