Shop SCHNEIDER ELECTRIC

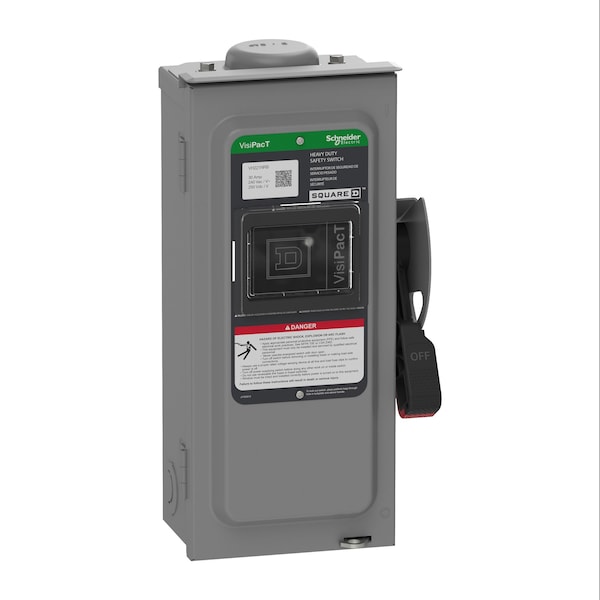

Safety Switch, Fusible, DPST, Single Phase, NEMA 3R, Indoor/Outdoor, Steel

  • Mfr # VH221NRB

  • Zoro # G309691364

product price:
$
304.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Fusible
Contact Form
DPST
Current Rating
30 A
Phase
Single
For Fuse Class
Class H, Class K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VH221NRB
Zoro #
G309691364
UPC #
3606485892979
Country of Origin
Korea, Republic of

Dimensions

Depth
5 1/8 in
Height
14 7/8 in
Width
6 5/8 in
Maximum Enclosure Depth
5.11 in

Details

Item
Safety Switch
Protection Method
Fusible
Contact Form
DPST
Current Rating
30 A
Phase
Single
For Fuse Class
Class H, Class K
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R
HP
Not Rated
Voltage
240 V
Handle Color
Black/Red
Housing Material
Steel
Standards
EU RoHS, UL Listed file E2875
Number of Wires
3
Neutral Assembly Included
Yes
IP Rating
IP14
Number of Poles
2
Amps
30 A
Duty
Heavy Duty
Includes
Dual Cover Interlock
Includes Interlocked Receptacle
Yes
Horsepower @ 240V AC
3 hp
Number of Locks
2
Series
F
Mounting Style
Surface Mount
Fuse Kit (Class R)
Mfr. No. RFK03L
Features
Quick Make/Break Operating Mechanism, Viewing Window
Number of Mounting Holes
3
NEMA Enclosure Rating
3R
Compatible with Manufacturer Model Number
RFK03L
Horsepower @ 600V AC
Not Rated
Horsepower @ 480V AC
Not Rated
Compatible Manufacturer Part Number
RFK03L
Compatible Manufacturer Model Number
RFK03L
For Use With Mfr. Model Number
RFK03L
Wiring Configuration
3-wire (2P + N)
Short-Circuit Current
10 kA for H or K || 10 kA for R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Disconnector Device Type
fusible disconnect
Electrical Connection
lugs
Tightening Torque
45-45 lbf.in 13.3-13.3 mm² (AWG 6) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Product Certifications
UL listed file E2875
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Series Name
heavy duty
Product Or Component Type
Single Throw Safety Switch
Device Composition
neutral (factory installed)
Device Application
heavy application
Device Mounting
surface
Compatible with Manufacturer Model No.
RFK03L
Compatible with Mfr. Model No.
RFK03L
For Use with Mfr Model Number
RFK03L
Compatible Pump Manufacturer Part Number
RFK03L
Compatible Mfr. Model Number
RFK03L
For Manufacturer Part Number
RFK03L
Compatible with Mfr. Model Number
RFK03L

Description

Safety Switch, Compatible with Manufacturer Model Number RFK03L, Contact Form DPST, Current Rating 30 A, Depth 5 1/8 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Class H, Class K, Fuse Kit (Class R) Mfr. No. RFK03L, Handle Color Black/Red, Height 14 7/8 in, Horsepower @ 240V AC 3 hp, Horsepower @ 480V AC Not Rated, Horsepower @ 600V AC Not Rated, Housing Material Galvannealed Steel

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
