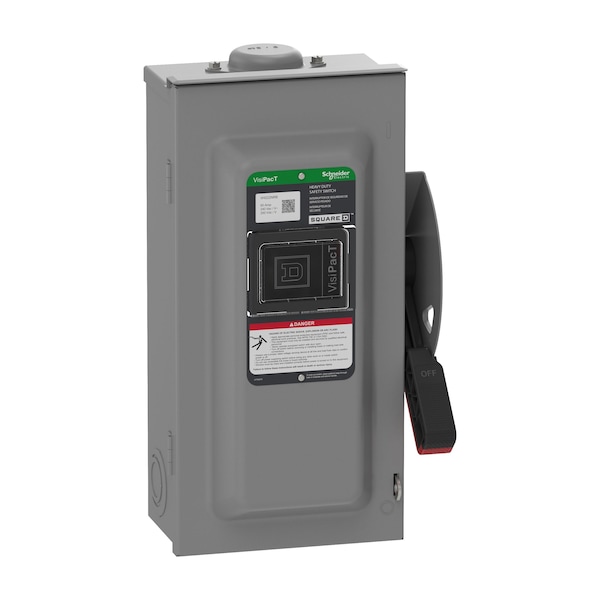

Schneider Electric Safety Switch, Fusible, DPST, Single Phase, NEMA 3R, Indoor/Outdoor, Steel VH222NRB - main

Safety Switch, Fusible, DPST, Single Phase, NEMA 3R, Indoor/Outdoor, Steel

  • Mfr # VH222NRB

  • Zoro # G009691374

product price:  $599.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Fusible
Contact Form
DPST
Current Rating
60 A
Phase
Single
For Fuse Class
Class H, Class K
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VH222NRB
Zoro #
G009691374
UPC #
3606485893075
Country of Origin
Korea, Republic of

Dimensions

Depth
5 1/8 in
Height
14 7/8 in
Width
6 5/8 in
Maximum Enclosure Depth
5.11 in

Details

Item
Safety Switch
Protection Method
Fusible
Contact Form
DPST
Current Rating
60 A
Phase
Single
For Fuse Class
Class H, Class K
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R
HP
Not Rated
Voltage
240 V
Handle Color
Black/Red
Housing Material
Steel
Standards
EU RoHS, UL Listed file E2875
Number of Wires
3
IP Rating
IP14
Number of Poles
2
Duty
Heavy Duty
Includes
Dual Cover Interlock
Amps
60 A
Neutral Assembly Included
Yes
Series
F
Features
Quick Make/Break Operating Mechanism, Viewing Window
Number of Mounting Holes
4
Number of Locks
2
Horsepower @ 240V AC
15 hp
Fuse Kit (Class R)
Mfr. No. RFK03H
Horsepower @ 480V AC
Not Rated
Includes Interlocked Receptacle
Yes
Mounting Style
Surface Mount
NEMA Enclosure Rating
3R
Horsepower @ 600V AC
Not Rated
Compatible with Manufacturer Model Number
RFK03H
Compatible Manufacturer Part Number
RFK03H
Compatible Manufacturer Model Number
RFK03H
For Use With Mfr. Model Number
RFK03H
Disconnector Device Type
fusible disconnect
Short-Circuit Current
10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Product Certifications
UL listed file E2875
Wiring Configuration
3-wire (2P + N)
Electrical Connection
lugs
Tightening Torque
50-50 lbf.in (AWG 3) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 50-50 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Series Name
heavy duty
Device Composition
neutral (factory installed)
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Product Or Component Type
Single Throw Safety Switch
Device Application
heavy application
Device Mounting
surface
Compatible with Manufacturer Model No.
RFK03H
Compatible with Mfr. Model No.
RFK03H
For Use with Mfr Model Number
RFK03H
Compatible Pump Manufacturer Part Number
RFK03H
Compatible Mfr. Model Number
RFK03H
For Manufacturer Part Number
RFK03H

Description

Safety Switch, Compatible with Manufacturer Model Number RFK03H, Contact Form DPST, Current Rating 60 A, Depth 5 1/8 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Class H, Class K, Fuse Kit (Class R) Mfr. No. RFK03H, Handle Color Black/Red, Height 14 7/8 in, Horsepower @ 240V AC 15 hp, Horsepower @ 480V AC Not Rated, Horsepower @ 600V AC Not Rated, Housing Material Galvannealed Steel

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
