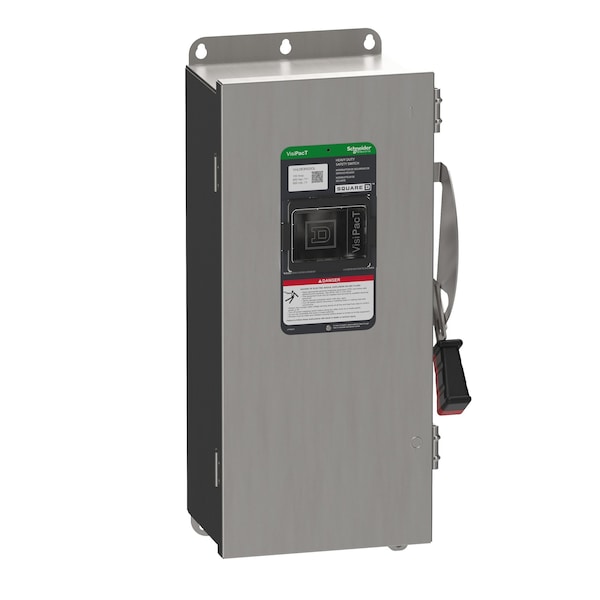

Schneider Electric Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 4X, Indoor/Outdoor, 316 Stainless Steel VHU363NSSGL - main

Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 4X, Indoor/Outdoor, 316 Stainless Steel

  • Mfr # VHU363NSSGL

  • Zoro # G509691379

product price:  $4,870.32
/ea
Free Shipping & Returns

Key Features

Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VHU363NSSGL
Zoro #
G509691379
UPC #
3606485894744
Country of Origin
United States

Dimensions

Height
20 3/4 in
Width
9 3/8 in
Depth
7 1/4 in
Maximum Enclosure Depth
7.25 in

Details

Item
Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 4X
Voltage
600 V
Handle Color
Black/Red
Housing Material
316 Stainless Steel
Standards
EU RoHS, UL Listed file E2875
Amps
100 A
Number of Poles
3
Duty
Heavy Duty
Neutral Assembly Included
Yes
Number of Wires
4
Includes
Dual Cover Interlock
Mounting Style
Surface Mount
Fuse Kit (Class R)
Mfr. No. RFK10
Number of Mounting Holes
6
Resistance Properties
Corrosion-Resistant
NEMA Enclosure Rating
4X
Compatible with Manufacturer Model Number
RFK10
Features
Quick Make/Break Operating Mechanism, Viewing Window
Includes Interlocked Receptacle
Yes
Horsepower @ 600V AC
150 hp
Number of Locks
2
Horsepower @ 480V AC
125 hp
Horsepower @ 240V AC
Not Rated
Compatible Manufacturer Part Number
RFK10
Compatible Manufacturer Model Number
RFK10
For Use With Mfr. Model Number
RFK10
Device Application
heavy application
Device Composition
neutral (factory installed)
Wiring Configuration
4-wire (3PH + N)
Device Mounting
surface
Disconnector Device Type
non-fusible disconnect
Product Or Component Type
Single Throw Safety Switch
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Tightening Torque
50-50 lbf.in (AWG 1...AWG 3/0) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Product Certifications
UL listed file E2875
Electrical Connection
lugs
Series Name
heavy duty
Compatible with Manufacturer Model No.
RFK10
Compatible with Mfr. Model No.
RFK10
For Use with Mfr Model Number
RFK10
Compatible Pump Manufacturer Part Number
RFK10
Compatible Mfr. Model Number
RFK10
For Manufacturer Part Number
RFK10

Description

Safety Switch, Compatible with Manufacturer Model Number RFK10, Contact Form 3PST, Current Rating 100 A, Depth 7 1/4 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Not Applicable, Fuse Kit (Class R) Mfr. No. RFK10, Handle Color Black/Red, Height 20 3/4 in, Horsepower @ 240V AC Not Rated, Horsepower @ 480V AC 125 hp, Horsepower @ 600V AC 150 hp, Housing Material 316 Stainless Steel

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
