  13. Selector Switch, 2 Pos, 16 mm, Black

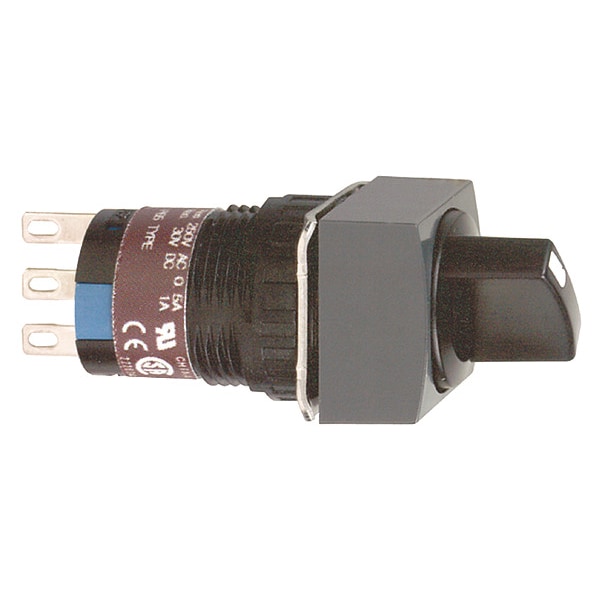

Schneider Electric Selector Switch, 2 Pos, 16 mm, Black XB6ECD222P - main

Selector Switch, 2 Pos, 16 mm, Black

  • Mfr # XB6ECD222P

  • Zoro # G3546646

product price: $21.89
/ea
Sold in multiples of 5 for $109.45

Key Features

Size
16 mm
Basic Material
Plastic
Type of Operator
Lever
Contact Form
DPDT
Action
Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB6ECD222P
Zoro #
G3546646
UPC #
785901142904
Country of Origin
China

Dimensions

Size
16 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
16 mm
Mounting Diameter
16 mm

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Lever
Contact Form
DPDT
Action
Maintained/Maintained
Cam
No Cam Included
Operator Head Material
Plastic
Color
Black
Bezel Material
Plastic
Position
2
Bezel Color
Black
DC Contact Rating
0.15 A @ 125 V, 0.2 A @ 125 V, 0.7 A @ 24 V, 1 A @ 24 V
AC Contact Rating
0.7 A @ 240 V, 1 A @ 120 V, 1 A @ 240 V, 1.5 A @ 120 V
Switch Operation @ Position C
No Third Position
Series
XB6E
IP Rating
IP65
Contact Rating
0.15A @ 125V DC, 0.2A @ 125V DC, 0.7A @ 240V AC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC
Includes
Standard Handle
Standards
CCC, cURus
Operator Illumination
Non-Illuminated
Switch Function @ 1st Position
Off
Switch Function @ 2nd Position
On
Number of Positions
2
Switch Function @ 4th Position
No Fourth Position
NEMA Enclosure Rating
13
Operator Head Type
Short-Handled Knob
Hazardous Location Specification
Not Rated
Operator Head Color
Black
Contact Block Material
Plastic
Switch Function @ 3rd Position
No Third Position
Overvoltage Category
II IEC 60536
Short-Circuit Protection
2 A cartridge fuse gG
Shape Of Signaling Unit Head
square
Operator Position Information
2 positions
Ip Degree Of Protection
IP65 IEC 60529
Product Or Component Type
monolithic selector switch
Marking
CE
[Ie] Rated Operational Current
1.5 A 120 V, AC-12 EN/IEC 60947-5-1 || 1 A 240 V, AC-12 EN/IEC 60947-5-1 || 0.7 A 240 V, AC-13 EN/IEC 60947-5-1 || 1 A 120 V, AC-13 EN/IEC 60947-5-1 || 1 A 24 V, DC-12 EN/IEC 60947-5-1 || 0.7 A 24 V, DC-13 EN/IEC 60947-5-1 || 0.2 A 125 V, DC-12 EN/IEC 60947-5-1 || 0.15 A 125 V, DC-13 EN/IEC 60947-5-1
Contacts Type And Composition
2 C/O
Ambient Air Temperature For Storage
-40-70°C
[Ith] Conventional Free Air Thermal Current
3 A fast connector socket) || 5 A
Operator Profile
black standard handle
Ambient Air Temperature For Operation
-10-55°C
Tightening Torque
0.6-1 N.m
Contact Operation
snap action
Electrical Durability
100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C
Shock Resistance
10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Short Name
XB6E
Vibration Resistance
1 mm 10-55 Hz)IEC 60068-2-6
Contact Resistance
50 mOhm 1/6 V
Connections - Terminals
insulated faston 2.8 x 0.5 mm || solder terminal <= 0.75 mm² AWG 19 || fast connector socket
Mechanical Durability
250000 cycles
Contacts Material
gold-flashed silver
Product Certifications
CCC || cURus

Description

Selector Switch, 16 mm, 2 Position, Maintained/Maintained Action, DPDT Contact Form, Type of Operator Lever, Color Black, Operator Head Material Plastic, Basic Material Plastic, Bezel Material Plastic, Bezel Color Black, Contact Rating 0.15A @ 125V DC, 0.2A @ 125V DC, 0.7A @ 240V AC, 0.7A @ 24V DC, 1.5A @ 120V AC, 1A @ 120V AC, 1A @ 240V AC, 1A @ 24V DC, IP Rating IP65, Cam No Cam Included, Switch Operation @ Position C No Third Position, Standards CCC, cURus, Includes Standard Handle

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
