  13. Selector Switch, 3 Pos, 16 mm, Black
Schneider Electric Selector Switch, 3 Pos, 16 mm, Black XB6DD235B - main

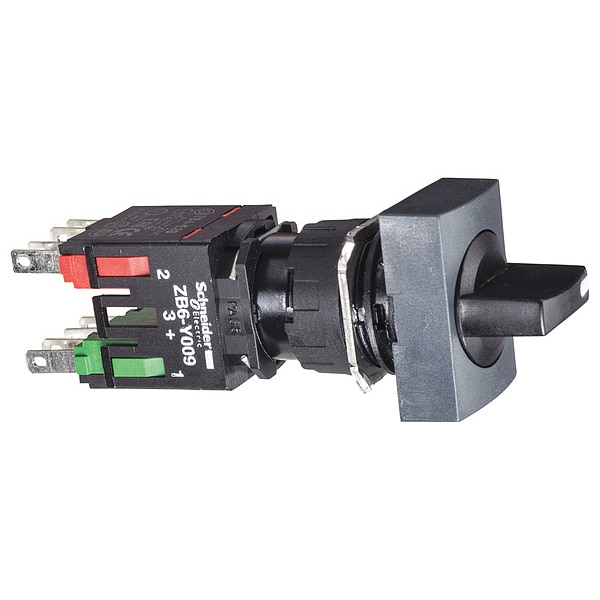

Selector Switch, 3 Pos, 16 mm, Black

  • Mfr # XB6DD235B

  • Zoro # G3606602

product price: $31.15
/ea

Key Features

Size
16 mm
Basic Material
Plastic
Type of Operator
Lever
Contact Form
1NO
Action
Maintained/Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XB6DD235B
Zoro #
G3606602
UPC #
785901325697
Country of Origin
Mexico

Dimensions

Size
16 mm
Width
24 mm
Height
18 mm
Depth
68 mm
Mounting Diameter
16 mm
Overall Width
0.94 in
Panel Cutout Diameter
16 mm
Overall Height
0.71 in
Overall Depth
2.68 in
Manufacturer Warranty Length
18 mo

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Lever
Contact Form
1NO
Action
Maintained/Maintained/Maintained
Operator Head Material
Plastic
Cam
No Cam Included
Color
Black
NEMA Rating
13, 4, 4X
Bezel Material
Plastic
Position
3
Bezel Color
Black
Series
XB6
Includes
Standard Handle
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
Standards
CCC, CSA, GOST, UL Listed
Contact Rating
0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
IP Rating
IP65
Ambient Air Temperature For Operation
-25-70°C
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Operator Profile
black standard handle
Electrical Durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Ip Degree Of Protection
IP65 IEC 60529
Positive Opening
with EN/IEC 60947-5-1 appendix K
Device Short Name
XB6
Protective Treatment
TC
Operating Position
any position
Product Or Component Type
complete selector switch
Contacts Type And Composition
1 NO + 1 NC
Shape Of Signaling Unit Head
rectangular
Electrical Reliability
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN 60947-5-4
Ambient Air Temperature For Storage
-40-70°C
Electrical Shock Protection Class
class II IEC 61140
Operator Position Information
3 positions 60°
Short-Circuit Protection
6 A cartridge fuse gG
Product Certifications
CCC || CSA || GOST || UL
Nema Degree Of Protection
NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Mechanical Durability
500000 cycles
Contact Operation
slow-break
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Contacts Material
silver alloy (Ag/Ni)
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Connections - Terminals
Faston connectors 2.8 x 0.5 mm
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Switch Function @ 1st Position
On
Contact Block Material
Plastic
Operator Head Type
Short-Handled Knob
NEMA Enclosure Rating
1, 12
Operator Illumination
Non-Illuminated
Switch Function @ 4th Position
No Fourth Position
Switch Function @ 3rd Position
On
Hazardous Location Specification
Not Rated
Operator Head Color
Black
Number of Positions
3
Switch Function @ 2nd Position
Off

Description

Selector Switch, 16 mm, 3 Position, Maintained/Maintained/Maintained Action, 1NO Contact Form, Type of Operator Lever, Color Black, Operator Head Material Plastic, Basic Material Plastic, Bezel Material Plastic, Bezel Color Black, Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC, NEMA Rating 13, 4, 4X, IP Rating IP65, Cam No Cam Included, Standards CCC, CSA, GOST, UL Listed, Includes Standard Handle
