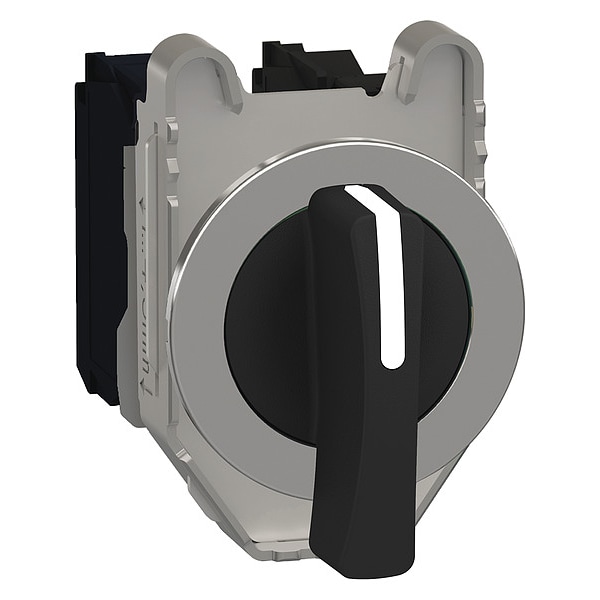

Selector Switch, 3 Pos, 30 mm, Black

  • Mfr # XB4FJ33

  • Zoro # G3604396

product price:  $63.15
/ea

Key Features

Size
30 mm
Basic Material
Metal
Contact Form
2NO
Action
Maintained/Maintained/Maintained
Operator Head Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
XB4FJ33
Zoro #
G3604396
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Size
30 mm
Depth
70 mm
Height
50 mm
Width
36.6 mm
Mounting Diameter
30.5 mm
Overall Depth
2.76 in
Overall Width
1.44 in
Panel Cutout Diameter
30 mm
Overall Height
1.97 in
Manufacturer Warranty Length
18 mo

Details

Item
Selector Switch
Basic Material
Metal
Contact Form
2NO
Action
Maintained/Maintained/Maintained
Operator Head Material
Plastic
Cam
No Cam Included
Color
Black
Position
3
Bezel Material
Chrome Plated Metal
Bezel Color
Chrome
Key Removal
No Key
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Series
XB4
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
NEMA Contact Rating Designation
A600/Q600
IP Rating
IP66, IP67, IP69, IP69K
Standards
CCC, CSA, EAC, UL Listed
Contact Rating
0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC
Fixing Collar Material
zamak
Device Short Name
XB4F
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Fixing Center
40 x 50 mm 1 to 6 mm thick panel)
Operator Position Information
3 positions +/- 45°
Shape Of Signaling Unit Head
round
Contacts Material
silver alloy (Ag/Ni)
Fixing Mode
by screws
Contacts Usage
standard contacts
Tightening Torque
0.8-1.2 N.m EN 60947-1
Terminals Description Iso N°1
(13-14)NO || (23-24)NO
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Mechanical Durability
1000000 cycles
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Contact Operation
slow-break
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Torque Value
0.14 N.m NO changing electrical state
Product Certifications
UL Listed || CSA || CCC || EAC
Overvoltage Category
class I IEC 60536
Operator Profile
black long handle
Ambient Air Temperature For Operation
-40-70°C
Ik Degree Of Protection
IK06 conforming to IEC 50102
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Type Of Operator
stay put
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Product Or Component Type
selector switch
Ambient Air Temperature For Storage
-40-70°C
Head Type
built-in-flush
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Device Presentation
complete product
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Protective Treatment
TH
Device Mounting
built-in
Positive Opening
without
Contacts Type And Composition
2 NO
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Terminals Description Iso N°1
(13-14)NO || (23-24)NO
Switch Function @ 3rd Position
On
Switch Function @ 4th Position
No Fourth Position
Contact Block Material
Metal
Switch Function @ 2nd Position
Off
Hazardous Location Specification
Not Rated
Operator Head Color
Black
Number of Positions
3
Operator Illumination
Non-Illuminated
Switch Function @ 1st Position
On
Operator Head Type
Long-Handled Knob
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, 2NO Contact Form, Color Black, No Key Key Removal, Operator Head Material Plastic, Basic Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, Contact Rating 0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CCC, CSA, EAC, UL Listed
