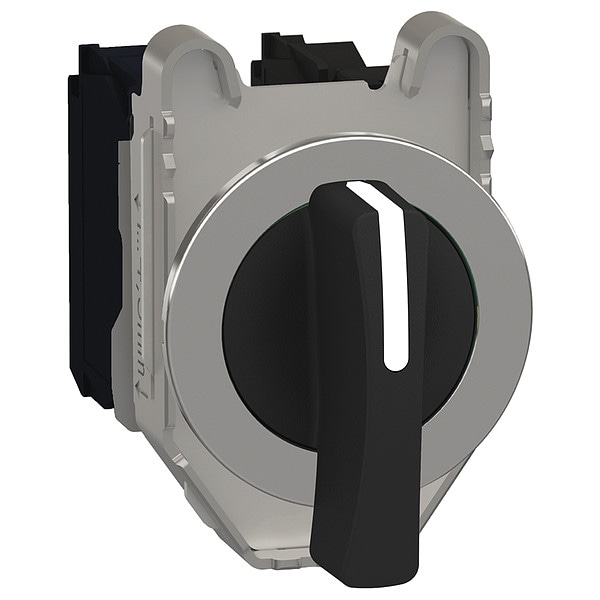

Selector Switch, 3 Pos, 30 mm, Black

Selector Switch, 3 Pos, 30 mm, Black

Mfr # XB4FJ53
Zoro # G3604493

$62.49

Key Features

Size

30 mm

Basic Material

Metal

Action

Momentary/Maintained/Momentary

Contact Form

2NO

Cam

No Cam Included

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

XB4FJ53

Zoro #

G3604493

UPC #

Country of Origin

France

Dimensions

Size

30 mm

Width

36.6 mm

Height

50 mm

Depth

70 mm

Panel Cutout Diameter

30 mm

Overall Width

1.44 in

Overall Height

1.97 in

Overall Depth

2.76 in

Manufacturer Warranty Length

18 mo

Mounting Diameter

30.5 mm

Details

Item

Selector Switch

Basic Material

Metal

Action

Momentary/Maintained/Momentary

Contact Form

2NO

Cam

No Cam Included

Operator Head Material

Plastic

Color

Black

Position

Bezel Material

Chrome Plated Metal

Key Removal

No Key

Bezel Color

Chrome

NEMA Contact Rating Designation

A600/Q600

AC Contact Rating

1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V

IP Rating

IP66, IP67, IP69, IP69K

DC Contact Rating

0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V

Series

XB4

Standards

CCC, CSA, EAC, UL Listed

Contact Rating

0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC

NEMA Enclosure Rating

1, 12, 13, 2, 3, 4, 4X

Contact Block Material

Metal

Hazardous Location Specification

Not Rated

Switch Function @ 1st Position

Momentary

Switch Function @ 3rd Position

Momentary

Operator Head Color

Black

Operator Head Type

Long-Handled Knob

Number of Positions

Operator Illumination

Non-Illuminated

Switch Function @ 2nd Position

Off

Switch Function @ 4th Position

No Fourth Position

Tightening Torque

0.8-1.2 N.m EN 60947-1

[Ie] Rated Operational Current

3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

Product Or Component Type

selector switch

Fixing Collar Material

zamak

Contacts Material

silver alloy (Ag/Ni)

Torque Value

0.14 N.m NO changing electrical state

Device Short Name

XB4F

Overvoltage Category

class I IEC 60536

Operator Position Information

3 positions +/- 45Â°

Terminals Description Iso NÂ°1

(23-24)NO || (13-14)NO

Contact Operation

slow-break

[Ui] Rated Insulation Voltage

600 V 3)EN 60947-1

Electrical Durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C

Device Presentation

complete product

Connections - Terminals

screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÂ² without cable end EN/IEC 60947-1

Ik Degree Of Protection

IK06 conforming to IEC 50102

Head Type

built-in-flush

Shape Of Signaling Unit Head

round

Fixing Center

40 x 50 mm 1 to 6 mm thick panel)

Ambient Air Temperature For Operation

-40-70Â°C

Short-Circuit Protection

10 A cartridge fuse gG EN/IEC 60947-5-1

Fixing Mode

by screws

Type Of Operator

to centre spring return

Ambient Air Temperature For Storage

-40-70Â°C

Product Certifications

UL Listed || CSA || CCC || EAC

Shock Resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Shape Of Screw Head

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ã˜ 4 mm || slotted flat Ã˜ 5.5 mm

Contacts Usage

standard contacts

Device Mounting

built-in

Operator Profile

black long handle

Contacts Type And Composition

2 NO

Resistance To High Pressure Washer

7000000 Pa 55Â°C 0.1 m

Electrical Reliability

Î» < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Î» < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Ip Degree Of Protection

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

[Uimp] Rated Impulse Withstand Voltage

6 kV EN 60947-1

Positive Opening

without

Protective Treatment

Mechanical Durability

1000000 cycles

Vibration Resistance

5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6

[Ith] Conventional Free Air Thermal Current

10 A EN/IEC 60947-5-1

Description

Selector Switch, 30 mm, 3 Position, Momentary/Maintained/Momentary Action, 2NO Contact Form, Color Black, No Key Key Removal, Operator Head Material Plastic, Basic Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, Contact Rating 0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CCC, CSA, EAC, UL Listed
