  13. SelectorSwitch, Illum, 2Pos, 30mm, Green

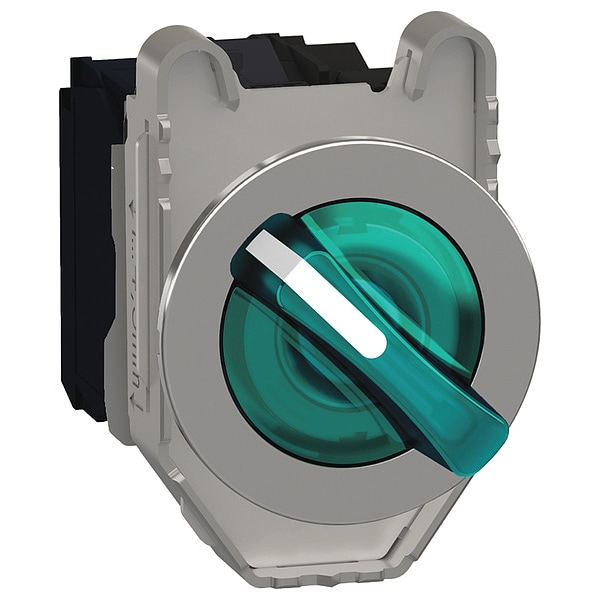

Schneider Electric SelectorSwitch, Illum, 2Pos, 30mm, Green XB4FK123B5 - main

SelectorSwitch, Illum, 2Pos, 30mm, Green

  • Mfr # XB4FK123B5

  • Zoro # G3613146

product price: $99.49
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Contact Form
1NO/1NC
Action
Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4FK123B5
Zoro #
G3613146
UPC #
-
Country of Origin
France

Dimensions

Size
30 mm
Height
53 mm
Depth
69.5 mm
Width
36.6 mm
Overall Width
1.44 in
Overall Height
2.09 in
Panel Cutout Diameter
30 mm
Overall Depth
2.74 in
Mounting Diameter
30.5 mm

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Contact Form
1NO/1NC
Action
Maintained/Maintained
Operator Head Material
Plastic
Cam
No Cam Included
Color
Green
NEMA Rating
12, 13, 4, 4X
Position
2
Bezel Material
Chrome Plated Metal
Bezel Color
Chrome
Switch Operation @ Position C
No Third Position
Series
XB4
Lamp Type
LED
Lamp Voltage
24V AC/DC
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Lamp Module Voltage
24V AC/DC
IP Rating
IP66, IP67, IP69, IP69K
Lamp Module Type
Full Voltage
Contact Rating
0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC
Standards
CCC, CSA, EAC, UL Listed
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Switch Operation @ Position D
No Fourth Position
NEMA Contact Rating Designation
A600/Q600
Hazardous Location Specification
Not Rated
Contact Block Material
Metal
Operator Head Type
Short-Handled Knob
Lamp Voltage - Maximum
24 V AC/DC
Switch Function @ 2nd Position
On
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Switch Function @ 1st Position
Off
Switch Function @ 4th Position
No Fourth Position
Number of Positions
2
Operator Illumination
Illuminated
Switch Function @ 3rd Position
No Third Position
Operator Head Color
Green
Operating Torque
0.14 N.m NO changing electrical state
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Fixing Mode
by screws 0.8 N.m 0.8 to 1.2 Nm)
Electrical Shock Protection Class
class I IEC 60536
Supply Voltage Limits
19.2-30 V DC || 21.6-26.4 V AC
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Device Mounting
built-in 30.75 mm +/- 0.25 mm
Contact Operation
slow-break
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Operator Position Information
2 positions 90°
Ik Degree Of Protection
IK06 IEC 50102
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Ambient Air Temperature For Storage
-40-70°C
Positive Opening
with NC contact EN/IEC 60947-5-1 appendix K
Head Type
built-in-flush
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Mechanical Durability
1000000 cycles
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Resistance To Fast Transients
2 kV IEC 61000-4-4
Tightening Torque
0.8-1.2 N.m EN 60947-1
Ambient Air Temperature For Operation
-40-70°C
Bulb Base
integral LED
Product Certifications
UL Listed || CSA || CCC || EAC
Protective Treatment
TH
Electromagnetic Emission
class B IEC 55011
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Signalling Type
steady
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Light Source
universal LED
Contacts Material
silver alloy (Ag/Ni)
Fixing Collar Material
zamak
Shape Of Signaling Unit Head
round
Product Or Component Type
illuminated selector switch
Contacts Usage
standard contacts
Operator Profile
green standard handle
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Surge Withstand
1 kV IEC 61000-4-5
Current Consumption
18 mA
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Device Presentation
complete product
Device Short Name
XB4F
Contacts Type And Composition
1 NO + 1 NC

Description

Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Lever, Color Green, Operator Head Material Plastic, Basic Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, Contact Rating 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included
