  13. SelectorSwitch, Illum, 3Pos, 30mm, Green

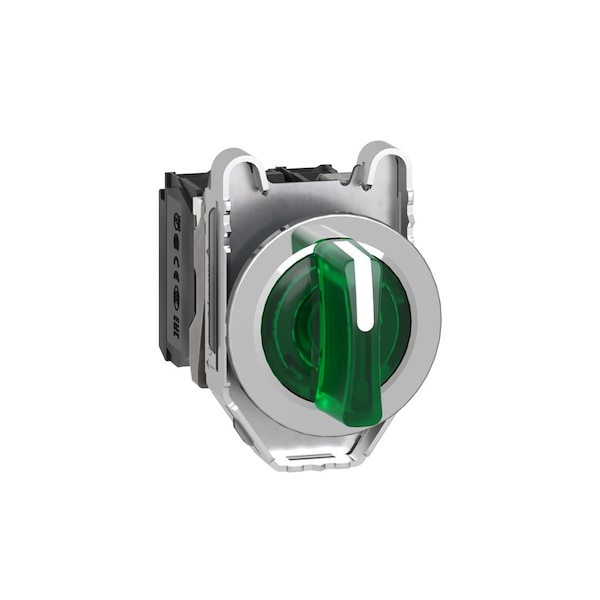

Schneider Electric SelectorSwitch, Illum, 3Pos, 30mm, Green XB4FK133B5 - main

SelectorSwitch, Illum, 3Pos, 30mm, Green

  • Mfr # XB4FK133B5

  • Zoro # G3610547

product price: $104.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4FK133B5
Zoro #
G3610547
UPC #
-
Country of Origin
France

Dimensions

Size
30 mm
Height
53 mm
Depth
69.5 mm
Width
36.6 mm
Overall Height
2.09 in
Overall Depth
2.74 in
Overall Width
1.44 in
Panel Cutout Diameter
30 mm
Mounting Diameter
30.5 mm

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Contact Form
1NO/1NC
Operator Head Material
Plastic
Cam
No Cam Included
Color
Green
NEMA Rating
12, 13, 4, 4X
Position
3
Bezel Material
Chrome Plated Metal
Bezel Color
Chrome
Lamp Voltage
24V AC/DC
Standards
CCC, CSA, EAC, UL Listed
Lamp Type
LED
Series
XB4
Contact Rating
0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC
Lamp Module Type
Full Voltage
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
IP Rating
IP66, IP67, IP69, IP69K
Lamp Module Voltage
24V AC/DC
Switch Operation @ Position D
No Fourth Position
NEMA Contact Rating Designation
A600/Q600
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Operator Head Color
Green
Operator Head Type
Short-Handled Knob
Hazardous Location Specification
Not Rated
Switch Function @ 1st Position
On
Lamp Voltage - Maximum
24 V AC/DC
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Switch Function @ 2nd Position
Off
Switch Function @ 3rd Position
On
Switch Function @ 4th Position
No Fourth Position
Number of Positions
3
Operator Illumination
Illuminated
Contact Block Material
Metal
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Product Certifications
UL Listed || CSA || CCC || EAC
Contacts Usage
standard contacts
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Device Mounting
built-in 30.75 mm +/- 0.25 mm
Current Consumption
18 mA
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Shape Of Signaling Unit Head
round
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Device Presentation
complete product
Contact Operation
slow-break
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Fixing Mode
by screws 0.8 N.m 0.8 to 1.2 Nm)
Resistance To Fast Transients
2 kV IEC 61000-4-4
Ambient Air Temperature For Operation
-40-70°C
Surge Withstand
1 kV IEC 61000-4-5
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Electrical Shock Protection Class
class I IEC 60536
Supply Voltage Limits
19.2-30 V DC || 21.6-26.4 V AC
Device Short Name
XB4F
Head Type
built-in-flush
Operating Torque
0.14 N.m NO changing electrical state
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Light Source
universal LED
Operator Position Information
3 positions +/- 45°
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Contacts Type And Composition
1 NO + 1 NC
Contacts Material
silver alloy (Ag/Ni)
Ambient Air Temperature For Storage
-40-70°C
Signalling Type
steady
Fixing Collar Material
zamak
Ik Degree Of Protection
IK04 IEC 50102
Positive Opening
with NC contact EN/IEC 60947-5-1 appendix K
Tightening Torque
0.8-1.2 N.m EN 60947-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Mechanical Durability
500000 cycles
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Electromagnetic Emission
class B IEC 55011
Operator Profile
green standard handle
Product Or Component Type
illuminated selector switch
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Protective Treatment
TH
Bulb Base
integral LED

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Lever, Color Green, Operator Head Material Plastic, Basic Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, Contact Rating 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included
