  13. SelectorSwitch, Illum, 3Pos, 30mm, Green

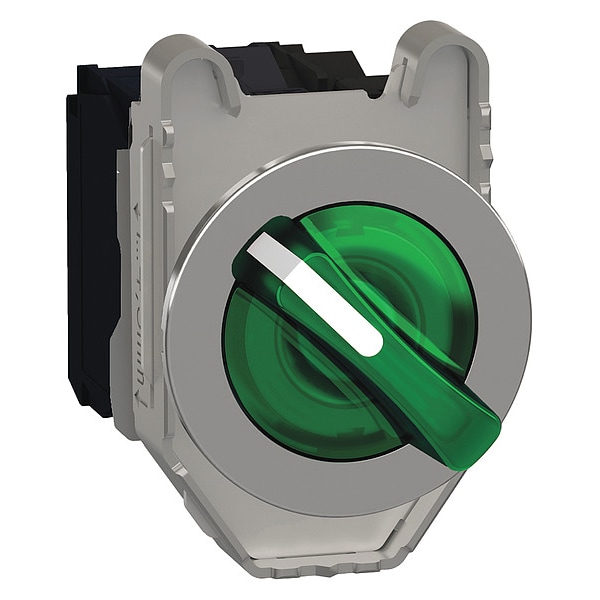

Schneider Electric SelectorSwitch, Illum, 3Pos, 30mm, Green XB4FK133M5 - main

SelectorSwitch, Illum, 3Pos, 30mm, Green

  • Mfr # XB4FK133M5

  • Zoro # G3612543

product price: $98.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Contact Form
1NO/1NC
Action
Maintained/Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4FK133M5
Zoro #
G3612543
UPC #
-
Country of Origin
France

Dimensions

Size
30 mm
Height
53 mm
Depth
69.5 mm
Width
36.6 mm
Overall Height
2.09 in
Overall Width
1.44 in
Panel Cutout Diameter
30 mm
Overall Depth
2.74 in
Mounting Diameter
30.5 mm

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Contact Form
1NO/1NC
Action
Maintained/Maintained/Maintained
Operator Head Material
Plastic
Cam
No Cam Included
Color
Green
NEMA Rating
12, 13, 4, 4X
Position
3
Bezel Material
Chrome Plated Metal
Bezel Color
Chrome
Series
XB4
IP Rating
IP66, IP67, IP69, IP69K
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
NEMA Contact Rating Designation
A600/Q600
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Lamp Type
LED
Contact Rating
0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC
Lamp Voltage
230 to 240V AC/DC
Standards
CCC, CSA, EAC, UL Listed
Lamp Module Voltage
230 to 240V AC
Lamp Module Type
Full Voltage
Switch Operation @ Position D
No Fourth Position
Switch Function @ 3rd Position
On
Switch Function @ 2nd Position
Off
Number of Positions
3
Hazardous Location Specification
Not Rated
Operator Head Type
Short-Handled Knob
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Switch Function @ 4th Position
No Fourth Position
Switch Function @ 1st Position
On
Contact Block Material
Metal
Operator Head Color
Green
Operator Illumination
Illuminated
Lamp Voltage - Maximum
240 V AC
Signalling Type
steady
Surge Withstand
1 kV IEC 61000-4-5
Device Presentation
complete product
Bulb Base
integral LED
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Contacts Usage
standard contacts
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Fixing Collar Material
zamak
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Fixing Mode
by screws 0.8 N.m 0.8 to 1.2 Nm)
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Product Certifications
UL Listed || CSA || CCC || EAC
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Contact Operation
slow-break
Electromagnetic Emission
class B IEC 55011
Protective Treatment
TH
Positive Opening
with NC contact EN/IEC 60947-5-1 appendix K
Mechanical Durability
500000 cycles
[Us] Rated Supply Voltage
230 to 240 V AC 50/60 Hz
Contacts Type And Composition
1 NO + 1 NC
Device Short Name
XB4F
Contacts Material
silver alloy (Ag/Ni)
Operator Profile
green standard handle
Light Source
universal LED
Electrical Shock Protection Class
class I IEC 60536
Operating Torque
0.14 N.m NO changing electrical state
Tightening Torque
0.8-1.2 N.m EN 60947-1
Ambient Air Temperature For Storage
-40-70°C
Head Type
built-in-flush
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Operator Position Information
3 positions +/- 45°
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Ik Degree Of Protection
IK04 IEC 50102
Current Consumption
14 mA
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Device Mounting
built-in 30.75 mm +/- 0.25 mm
Resistance To Fast Transients
2 kV IEC 61000-4-4
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Supply Voltage Limits
195-264 V AC
Product Or Component Type
illuminated selector switch
Ambient Air Temperature For Operation
-40-70°C
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Shape Of Signaling Unit Head
round

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Lever, Color Green, Operator Head Material Plastic, Basic Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, Contact Rating 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included
