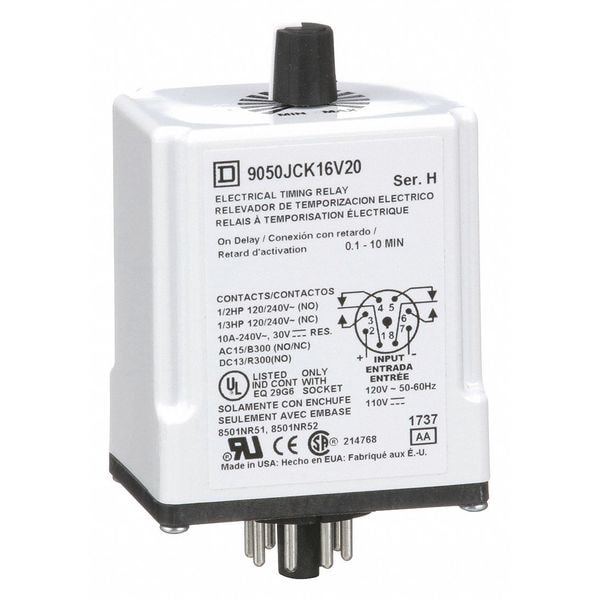

Single Function Time Delay Relay, Octal, On Delay, 1 Functions 120V DC, DPDT
Mfr # 9050JCK16V20
Zoro # G0270496
product price: $97.15
/ea
Free Shipping & Returns
Key Features
Delay Function
On Delay
Number of Delay Functions
1
Minimum Time Setting
0.1 sec
Maximum Time Setting
10 min
Base Shape
Octal
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9050JCK16V20
Zoro #
G0270496
UPC #
785901032595
Country of Origin
United States
Dimensions
Overall Height - Relay
4.1 in
Width
1.69 in (43 mm)
Depth
104 mm
Body Height
2.34 in
Overall Depth
4.05 in
Body Depth
2.75 in
Body Width
1.72 in
Height
2.40 in (61 mm)
Description
Single Function Time Delay Relay, Adjustment Method Rotary Knob, Base Shape Octal, Coil Voltage 120V DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 120/240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, Input Voltage 110V AC, 120V DC, Minimum Time Setting 0.1 sec, Maximum Time Setting 10 min, Number of Pins 8, Sealing Sealed, Mounting Style Plug-In, Body Depth 2.75 in
