  15. Single isolating block for power circuit, Harmony XAC, horizontal fixing centres 40mm, screw clamp terminal, 3NC

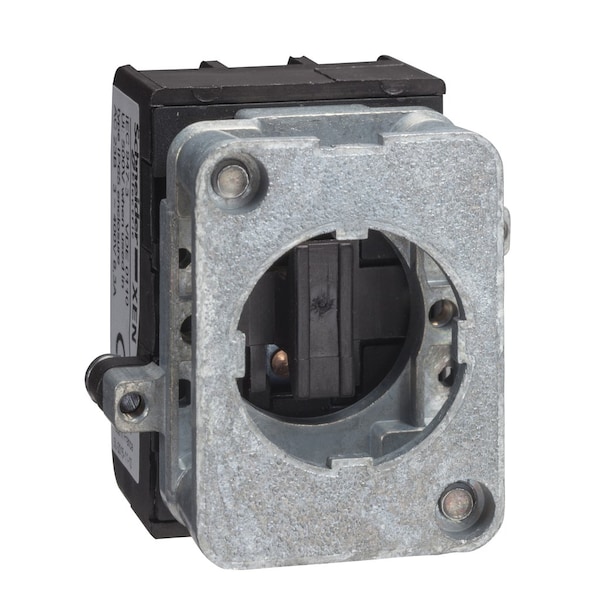

Schneider Electric Single isolating block for power circuit, Harmony XAC, horizontal fixing centres 40mm, screw clamp terminal, 3NC XACS399 - main

Single isolating block for power circuit, Harmony XAC, horizontal fixing centres 40mm, screw clamp terminal, 3NC

  • Mfr # XACS399

  • Zoro # G7834492

product price: $143.99
/ea
Free Shipping & Returns

Key Features

Standards
IEC 60947-3, CSA C22.2 No 14
Contact Operation
snap action
Rated Operational Power In W
3000 W AC-23B 400 V
Mounting of Block
front mounting
Mechanical Durability
1000000 cycles
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACS399
Zoro #
G7834492
UPC #
-
Country of Origin
United States

Details

Item
Single isolating block XACS - for power
Standards
IEC 60947-3, CSA C22.2 No 14
Contact Operation
snap action
Rated Operational Power In W
3000 W AC-23B 400 V
Mounting of Block
front mounting
Mechanical Durability
1000000 cycles
Contact Code Designation
A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
Ambient Air Temperature For Storage
-40-70°C
Contact Block Type
single
Electrical Circuit Type
power circuit
Shock Resistance
100 gn IEC 60068-2-27
Electrical Shock Protection Class
class II IEC 61140
Product Compatibility
XACB
Range of Product
Harmony XAC
Vibration Resistance
15 gn 10-500 Hz)IEC 60068-2-6
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Ambient Air Temperature For Operation
-25-70°C
[Ui] Rated Insulation Voltage
400 V 3)IEC 60947-1
Contact Block Application
emergency stop push-button
Contacts Type And Composition
3 NC
Component Name
XACS
Horizontal Fixing Centres
40 mm
Product or Component Type
isolating block
Connections - Terminals
screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
Mounting Of Block
front mounting
Product Or Component Type
isolating block

Description

Single isolating block XACS - for power
