  13. Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector

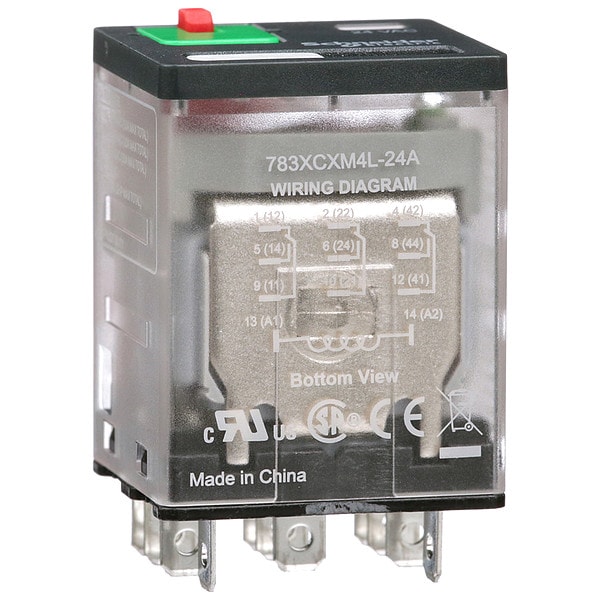

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector 783XCXM4L-24A - main

CAD Drawings

Download CAD Files

Socket, General Purpose Relay, Square, 15 A, 11 Pins, Faston Connector

  • Mfr # 783XCXM4L-24A

  • Zoro # G0701425

CAD Available
product price: $15.49
/ea

Key Features

CAD Drawing
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
11
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
783XCXM4L-24A
Zoro #
G0701425
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.85 in
Flat Pin Width
0.187 in
Body Depth
1.54 in
Body Width
1.2 in
Body Height
1.07 in
Overall Depth
2.07 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.3 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
11
Coil Voltage
24V AC
Current Rating
15 A
Contact Form
3PDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Contact Material
Gold Flashed Silver Alloy
Power Consumption - Relay
1.5 VA
Status Indicator
LED and Mechanical Flag
Features
Gold Flashed Contacts
Socket Code
C
Socket
Mfr. No. 70-783D11-1A
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Standards
CE Certified, CSA Certified, UL Listed
Horsepower @ 120V AC
1/2 hp
Response Time
20 msec
IP Rating
IP40
Maximum Switching Voltage
250V AC, 300V DC
Push-To-Test Method
Lockable Push Test Button
Power Consumption
1.85 W, 2.05 VA
Minimum Switching Current
10 mA
Motor Rated
Yes
Maximum Operating Temperature
131 Degrees F
Mechanical Operating Durability
10,000,000
Resistance Properties
Shock-Resistant, Vibration-Resistant
For Use With
Automation Panels and Controls
Frequency
50/60 Hz
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Weight
2.12 oz
Electrical Operating Durability
100,000
Coil Resistance
110 ohm
Input Voltage
24V AC
Minimum Operating Temperature
-40 Degrees F
Horsepower @ 240V AC
3/4 hp
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Series
783 Series
Vibration Resistance
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Power consumption in VA
2.05 VA AC
Motor Power HP
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Operating Time
20 ms operating; 20 ms tripping
Control Type
Lockable test button
Product Range
Legacy
Power consumption in W
1.85 W DC
Shock Resistance
15 gn in operation
Voltage Range
0.8...1.1 Un AC/DC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Connections Terminals
Faston terminals
Product Certifications
UL; CE; CSA
Contact Composition
3 NO + 3 NC
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 3PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 11, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method Lockable
