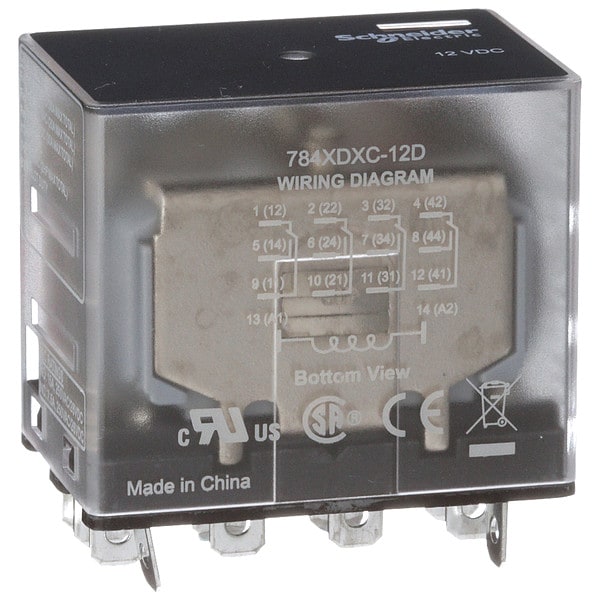

Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector
Mfr # 784XDXC-12D
Zoro # G1142172
product price: $14.35
/eaKey Features
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
12V DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
784XDXC-12D
Zoro #
G1142172
UPC #
-
Country of Origin
China
Dimensions
Overall Height - Relay
1.64 in
Body Height
1.07 in
Body Width
1.6 in
Flat Pin Width
0.187 in
Body Depth
1.37 in
Overall Depth
1.66 in
Width
1.60 in (40.6 mm)
Depth
1.07 in (27.3 mm)
Description
General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V, Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.37 in
