  13. Socket, General Purpose Relay, Square, 15 A, 5, Faston Connector

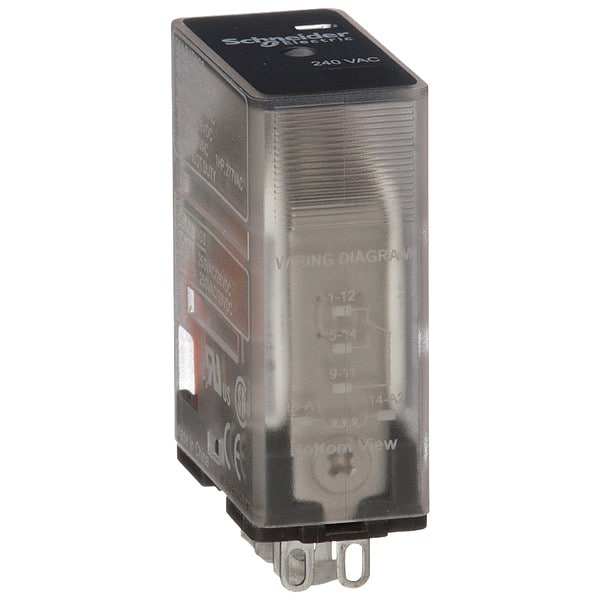

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 5, Faston Connector 781XAXRC-240A - main

Socket, General Purpose Relay, Square, 15 A, 5, Faston Connector

  • Mfr # 781XAXRC-240A

  • Zoro # G0338311

product price: $6.45
/ea

Key Features

Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
5
Coil Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
781XAXRC-240A
Zoro #
G0338311
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.37 in
Body Depth
1.39 in
Overall Depth
1.39 in
Body Height
1.07 in
Body Width
0.53 in
Depth
1.07 in (27.3 mm)
Width
0.55 in (14 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
5
Coil Voltage
240V AC
Current Rating
15 A
Contact Form
SPDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Contact Material
Gold Flashed Silver Alloy
Socket
Mfr. No. 70-781D5R-1A, 70-781D5, 70-781D
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Power Consumption - Relay
1.6 VA
Socket Code
L
Standards
CE Certified, CSA Certified, UL Listed
Features
Clear Cover
Status Indicator
Mechanical Flag
Mechanical Operating Durability
10,000,000
Electrical Operating Durability
100,000
Coil Resistance
17,720 ohm
Weight
0.92 oz
Resistance Properties
Shock-Resistant, Vibration-Resistant
Horsepower @ 240V AC
1 hp
Frequency
50/60 Hz
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
For Use With
Automation Panels and Controls
IP Rating
IP40
Input Voltage
240V AC
Minimum Operating Temperature
-40 Degrees F
Horsepower @ 120V AC
1/2 hp
Push-To-Test Method
No Test Button
Maximum Switching Voltage
250V AC, 300V DC
Series
781R Series
Motor Rated
Yes
Response Time
25 msec
Minimum Switching Current
10 mA
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Maximum Operating Temperature
131 Degrees F
Power Consumption
1.1 W, 1.6 VA
Connections Terminals
Faston terminals
Operating Time
25 ms; 20 ms
Contact Composition
1 NC + 1 NO
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Power consumption in W
1.1 W DC
Product Certifications
UL; CE; CSA
Product Range
Legacy
Vibration Resistance
+/-1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Power consumption in VA
1.6 VA AC
Voltage Range
0.8...1.1 Un AC/DC
Shock Resistance
15 gn in operation
Motor Power HP
0.5 hp 120 V AC 50-60 Hz; 1 hp 277 V AC 50-60 Hz
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)

Description

General Purpose Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form SPDT, Current Rating 15 A, Electrical Connection Faston Terminal, Number of Pins 5, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.39 in, Body Height 1.07 in
