  8. Lmt Swtch Hd, Rllr Lvr Plngr, Top, 1.37 In

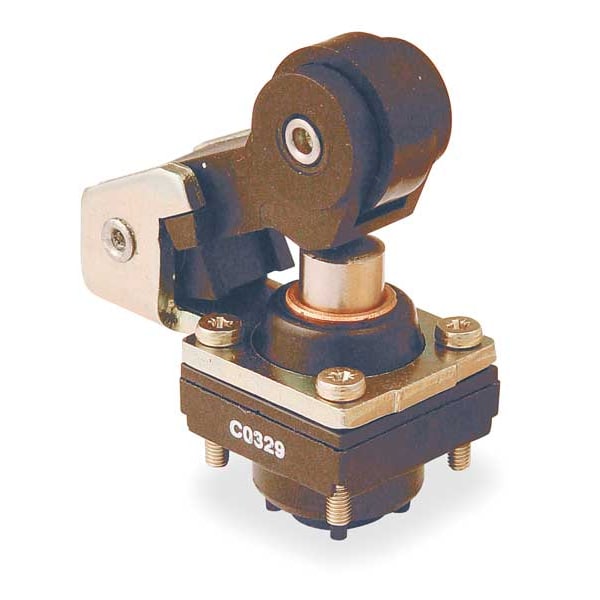

Telemecanique Sensors Lmt Swtch Hd, Rllr Lvr Plngr, Top, 1.37 In ZCKD21 - main

Lmt Swtch Hd, Rllr Lvr Plngr, Top, 1.37 In

  • Mfr # ZCKD21

  • Zoro # G2658713

product price:  $67.29
/ea

Key Features

Actuator Style
Roller Lever Plunger
Actuator Location
Top
Actuator Length
1.37 in
For Use With
Mfr. No. XCKL, XCKM
NEMA Rating
1, 12, 2, 3, 4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZCKD21
Zoro #
G2658713
UPC #
785901646723
Country of Origin
Multiple

Dimensions

Actuator Length
1.37 in
Arm Length - Maximum
1.37 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch Head
Actuator Style
Roller Lever Plunger
Actuator Location
Top
For Use With
Mfr. No. XCKL, XCKM
NEMA Rating
1, 12, 2, 3, 4
Movement
CW and CCW
Amps
3A/0.27A
Operating Force
1.8 in-lb
Description/Special Features
Momentary
Standards
EU RoHS, REACH
Operating Temp.
-25 Degrees to 70 Degrees F
Travel
0.47 in
IP Rating
Not Rated
Environmental Characteristic
standard environment
Ambient Air Temperature For Storage
-40-70°C
Movement Of Operating Head
rotary || linear
Head Material
plastic
Series Name
standard format
Positive Opening
with
Ambient Air Temperature For Operation
-25-70°C
Associated Body
ZCKMD35 || ZCKMD31H7 || ZCKL5H7 || ZCKLD35 || ZCKMD39H29 || ZCKLD31H7 || ZCKLD35H7 || ZCKM6H7 || ZCKL6 || ZCKM8H29 || ZCKM7H29 || ZCKLD39H7 || ZCKMD37 || ZCKMD35H7 || ZCKLD37 || ZCKM1 || ZCKL1H7 || ZCKLD39 || ZCKMD39H7 || ZCKMD31H29 || ZCKM5H7 || ZCKL6H7 || ZCKMD31 || ZCKM7H7 || ZCKM9 || ZCKMD37H29 || ZCKM6 || ZCKM1H29 || ZCKL1 || ZCKLD37H7 || ZCKM6H29 || ZCKM8 || ZCKM1H7 || ZCKM7 || ZCKL5 || ZCKM5 || ZCKM9H29 || ZCKM5H29 || ZCKL8 || ZCKL8H7 || ZCKLD31 || ZCKL7H7 || ZCKMD37H7 || ZCKMD35H29 || ZCKMD39 || ZCKL7 || ZCKM8H7
Head Type
plunger head
Product Compatibility
XCKM || XCKL
Switch Actuation
by 30° cam
Type Of Operator
roller lever plunger spring return thermoplastic
Product Or Component Type
limit switch head
Type Of Approach
lateral approach, 1 direction
Device Short Name
ZCKD
Total Travel
0.47 in
Compatible with Series
XCKL, XCKM
Operating Torque
1.8 in-lb
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Includes Actuator
Actuator Included
Directional Movement
CCW/CW
Action
Momentary
NEMA Enclosure Rating
1, 12, 2, 3, 4

Description

Limit Switch Head, Actuator Style Roller Lever Plunger, Actuator Location Top, Actuator Length 1.37 in, Contact Form Not Applicable, Amps 3A/0.27A, Voltage Rating Not Applicable, Travel 0.47 in, Movement CW and CCW, Operating Force 1.8 in-lb, Operating Temp. -25 Degrees to 70 Degrees F, NEMA Rating 1, 12, 2, 3, 4, IP Rating Not Rated, Standards EU RoHS, REACH, For Use With Mfr. No. XCKL, XCKM
