  13. Socket, General Purpose Relay, Square, 15 A, 5, Faston Connector

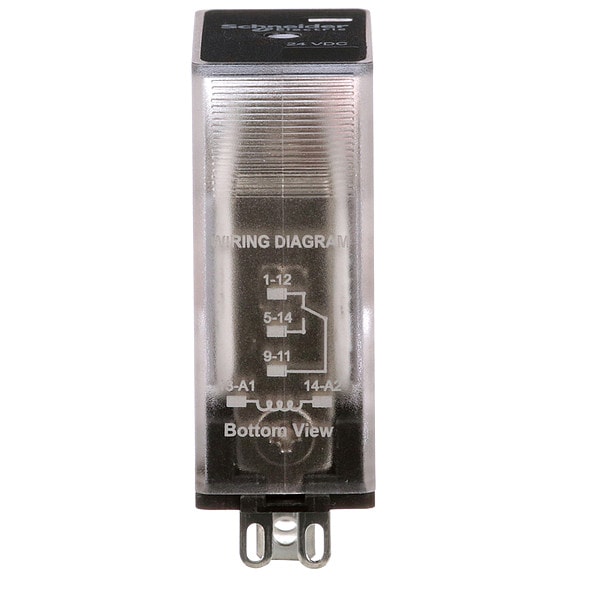

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 5, Faston Connector 781XAXRC-24D - main

Socket, General Purpose Relay, Square, 15 A, 5, Faston Connector

  • Mfr # 781XAXRC-24D

  • Zoro # G0316788

product price: $6.79
/ea

Key Features

Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
5
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
781XAXRC-24D
Zoro #
G0316788
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.37 in
Body Depth
1.39 in
Body Width
0.53 in
Overall Depth
1.39 in
Body Height
1.07 in
Depth
1.07 in (27.3 mm)
Width
0.55 in (14 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
5
Coil Voltage
24V DC
Current Rating
15 A
Contact Form
SPDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Contact Material
Gold Flashed Silver Alloy
Features
Clear Cover
Standards
CE Certified, CSA Certified, UL Listed
Socket Code
L
Socket
Mfr. No. 70-781D5R-1A, 70-781D5, 70-781D
Power Consumption - Relay
1.1 W
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Status Indicator
Mechanical Flag
Motor Rated
Yes
Resistance Properties
Shock-Resistant, Vibration-Resistant
Frequency
50/60 Hz
Weight
0.92 oz
Response Time
25 msec
Minimum Operating Temperature
-40 Degrees F
Horsepower @ 240V AC
1 hp
Maximum Switching Voltage
250V AC, 300V DC
Power Consumption
1.1 W, 1.6 VA
Series
781R Series
Minimum Switching Current
10 mA
Horsepower @ 120V AC
1/2 hp
Electrical Operating Durability
100,000
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
IP Rating
IP40
Coil Resistance
450 ohm
Input Voltage
24V DC
Maximum Operating Temperature
131 Degrees F
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Push-To-Test Method
No Test Button
Mechanical Operating Durability
10,000,000
For Use With
Automation Panels and Controls
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Connections Terminals
Faston terminals
Contact Composition
1 NC + 1 NO
Power consumption in VA
1.6 VA AC
Vibration Resistance
+/-1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Operating Time
25 ms; 20 ms
Product Certifications
UL; CE; CSA
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Voltage Range
0.8...1.1 Un AC/DC
Power consumption in W
1.1 W DC
Motor Power HP
0.5 hp 120 V AC 50-60 Hz; 1 hp 277 V AC 50-60 Hz
Product Range
Legacy
Shock Resistance
15 gn in operation

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form SPDT, Current Rating 15 A, Electrical Connection Faston Terminal, Number of Pins 5, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.39 in, Body Height 1.07 in
