  13. Socket, General Purpose Relay, Square, 15 A, 5 Pins, Faston Connector

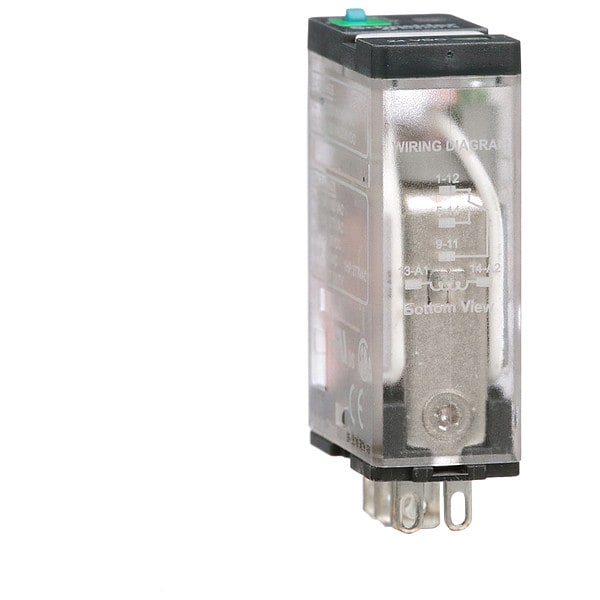

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 5 Pins, Faston Connector 781XAXRM4L-24D - main

CAD Viewer & Download Files

Socket, General Purpose Relay, Square, 15 A, 5 Pins, Faston Connector

  • Mfr # 781XAXRM4L-24D

  • Zoro # G0059197

CAD Available
product price: $9.45
/ea

Key Features

CAD Drawing
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
5
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
781XAXRM4L-24D
Zoro #
G0059197
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.57 in
Body Width
0.53 in
Body Height
1.07 in
Body Depth
1.57 in
Overall Depth
1.57 in
Depth
1.07 in (27.3 mm)
Width
0.83 in (21 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
5
Coil Voltage
24V DC
Current Rating
15 A
Contact Form
SPDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket Code
L
Socket
Mfr. No. 70-781D5R-1A, 70-781D5, 70-781D
Standards
CE Certified, CSA Certified, UL Listed
Power Consumption - Relay
1.4 W
Contact Material
Gold Flashed Silver Alloy
Status Indicator
LED and Mechanical Flag
Power Consumption
1.4 W, 1.9 VA
Horsepower @ 240V AC
1 hp
Push-To-Test Method
Lockable Push Test Button
Horsepower @ 120V AC
1/2 hp
Weight
1.02 oz
Minimum Switching Current
10 mA
Minimum Operating Temperature
-40 Degrees F
Maximum Switching Voltage
250V AC, 300V DC
Frequency
50/60 Hz
Electrical Operating Durability
100,000
Motor Rated
Yes
Coil Resistance
450 ohm
Mechanical Operating Durability
10,000,000
For Use With
Automation Panels and Controls
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Series
781R Series
IP Rating
IP40
Response Time
25 msec
Maximum Operating Temperature
131 Degrees F
Input Voltage
24V DC
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Resistance Properties
Shock-Resistant, Vibration-Resistant
Product Range
Legacy
Vibration Resistance
+/-1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Product Certifications
UL; CE; CSA
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Voltage Range
0.8...1.1 Un AC/DC
Operating Time
20 ms operating; 20 ms tripping
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Motor Power HP
0.5 hp 120 V AC 50-60 Hz; 1 hp 277 V AC 50-60 Hz
Contact Composition
1 NC + 1 NO
Shock Resistance
15 gn in operation
Power consumption in W
1.4 W DC
Control Type
Lockable test button
Connections Terminals
Faston terminals
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Power consumption in VA
1.9 VA AC
CAD Available
Yes

Description

General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form SPDT, Current Rating 15 A, Electrical Connection Faston Terminal, Number of Pins 5, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V (NO), 7.55 A @ 250V (NC), Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1 hp, Mounting Style Socket, Push-To-Test Method Lockable, Body Depth 1.57 in
