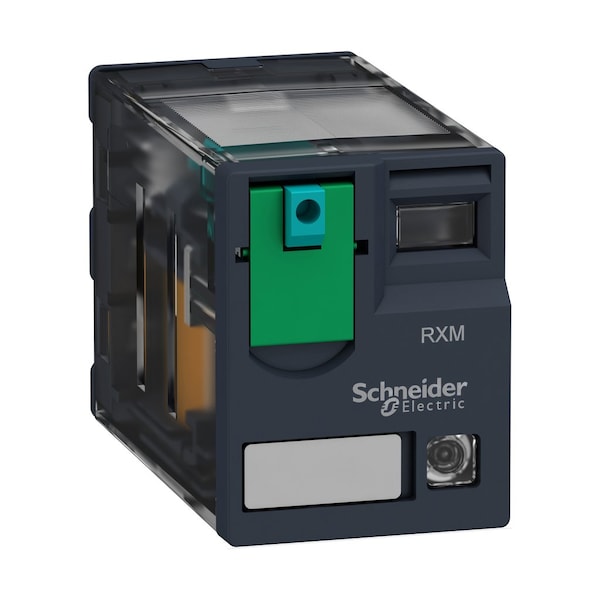

Socket, Plug-In Relay, 3 A, Pin

Plug-In Relay

Socket

Pin

12V DC

3 A

3A @ 250V AC

3A @ 28V DC

CSA C22.2 No 14; EN/IEC 61810-1; UL 508; CE; GOST; Lloyd's

Gold Plated Bifurcated Silver

Lockable Test Button; Status LED

0.9 W

250 V IEC

1300 V AC between contacts with micro disconnection; 2000 V AC between coil and contact; 2000 V AC between poles

Max 750 VA/84 W; Min 15 mW 3 mA, 5 V

RT I

-40-55°C

20 ms

flat

RXM; Miniature

160 Ohm

15 mW 3 mA, 5 V

750 VA/84 W

any position

160 Ohm 20°C +/- 10 %

-40-85°C

complete product

3 A 250 V AC, 3 A 28 V DC

10000000 cycles

RXM

<= 1200 cycles/hour under load, <= 18000 cycles/hour no-load

-40-55°C

100000 cycles resistive depending on mounting position and working environment

Miniature

2

3 A -40-55°C

9.6...13.2 V DC

>= 0.1 Uc

level A group mounting

3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating

2.5 kV 1.2/50µs

IP40 conforming to IEC 60529

0.2

lockable test button

10 gnin operation, 30 gnnot operating

250 V IEC, 300 V CSA, 300 V UL

Lockable Push Test Button
