This item is Discontinued.

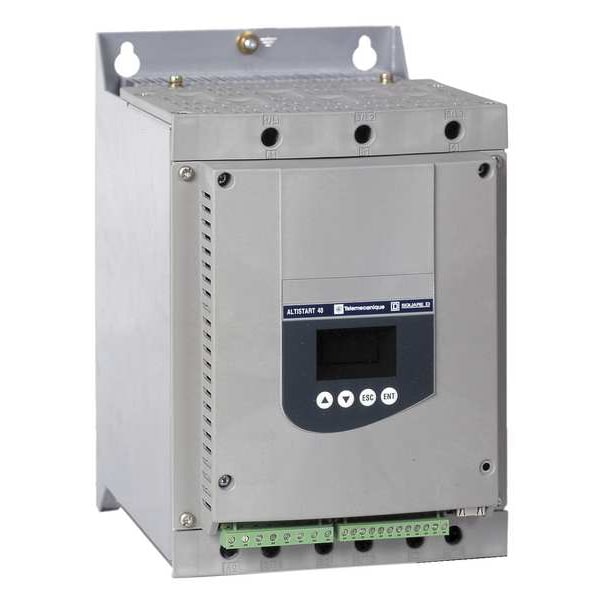

Schneider Electric Soft Start, 208-690VAC, 110A ATS48C11Y

Soft Start, 208-690VAC, 110A (Discontinued)

  • Mfr # ATS48C11Y
  • Zoro # G3519293
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ATS48C11Y
Zoro #
G3519293
UPC #
785901982340
Country of Origin
Multiple

Dimensions

Width
7.48 in
Depth
9.25 in
Height
11.42 in
Overall Height
11.42 in
Overall Depth
9.25 in
Overall Width
7.48 in

Details

Item
Soft Start
Input Voltage
208 to 690V AC
Output Current
110 A
With Bypass / No Bypass
No Bypass
HP @ 3 Phase - 240V
40 hp
HP @ 3 Phase - 480V
75
Inputs/Outputs
4 Logic Inputs, 1 PTC Probe Analog Input, 1 Analog Output, 3 Relay Outputs
Phase
Three
HP @ 3 Phase - 208V
30 hp
Communication Port
Modbus
Stop Time
1 to 60 sec
Standards
C-tick, CCC, CSA Certified, DNV, EN/IEC 60947-4-2, GOST, NOM 117, SEPRO, TCF, UL Listed
Enclosure Rating
IP20, NEMA 1
Start Type
Torque Control Start
Ramp Time
1 to 60 sec.
Output Voltage
208 to 690V AC
IP Rating
20
Display
3 Seven -Segment display
Includes
Exclusive motor Torque Control System (TCS)
Control Voltage
110 to 230V AC
Starting Torque
0% to 400%
HP @ 3 Phase - 575V
100 hp
Application
Heavy Duty Industry, Pumps
HP @ 3 Phase - 460V
75
HP @ 3 Phase - 230V
40
Output Power
100 hp @ 3 Phase, 575V AC, 25 hp @ 3 Phase, 208V AC, 30 hp @ 3 Phase, 208V AC, 40 hp @ 3 Phase, 230V AC, 60 hp @ 3 Phase, 460V AC, 75 hp @ 3 Phase, 575V AC
Function Type
Start or Stop
Frequency
50/60 Hz
Type
HMI Control

Description

Soft Start, Input Voltage 208 to 690V AC, Output Current 110 A, Output Voltage 208 to 690V AC, 100 hp @ 3 Phase, 575V AC, 25 hp @ 3 Phase, 208V AC, 30 hp @ 3 Phase, 208V AC, 40 hp @ 3 Phase, 230V AC, 60 hp @ 3 Phase, 460V AC, 75 hp @ 3 Phase, 575V AC, Control Voltage 110 to 230V AC, IP20, NEMA 1
