This item is Discontinued.

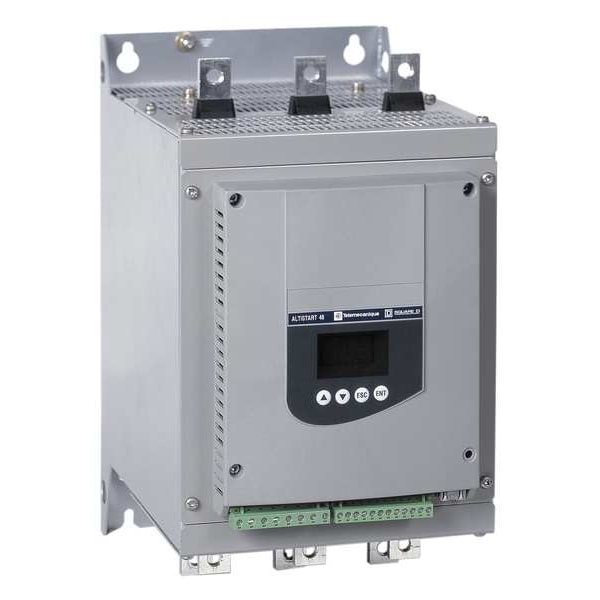

Schneider Electric Soft Start, 208-690VAC, 140A ATS48C14Y

Soft Start, 208-690VAC, 140A (Discontinued)

  • Mfr # ATS48C14Y
  • Zoro # G3536075
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ATS48C14Y
Zoro #
G3536075
UPC #
785901982364
Country of Origin
Multiple

Dimensions

Height
13.39 in
Width
7.87 in
Depth
10.43 in
Overall Height
13.39 in
Overall Depth
10.43 in
Overall Width
7.87 in

Details

Item
Soft Start
Input Voltage
208 to 690V AC
Output Current
140 A
With Bypass / No Bypass
No Bypass
HP @ 3 Phase - 240V
50 hp
HP @ 3 Phase - 480V
100
Inputs/Outputs
4 Logic Inputs, 1 PTC Probe Analog Input, 1 Analog Output, 3 Relay Outputs
Phase
Three
Control Voltage
110 to 230V AC
Stop Time
1 to 60 sec
HP @ 3 Phase - 575V
125 hp
Standards
C-tick, CCC, CSA Certified, DNV, EN/IEC 60947-4-2, GOST, NOM 117, SEPRO, TCF, UL Listed
Communication Port
Modbus
Starting Torque
0% to 400%
Display
3 Seven -Segment display
Start Type
Torque Control Start
IP Rating
20
Application
Heavy Duty Industry, Pumps
HP @ 3 Phase - 208V
40 hp
Enclosure Rating
IP20, NEMA 1
Output Voltage
208 to 690V AC
Ramp Time
1 to 60 sec.
Includes
Exclusive motor Torque Control System (TCS)
HP @ 3 Phase - 230V
50
HP @ 3 Phase - 460V
100
Function Type
Start or Stop
Output Power
100 hp @ 3 Phase, 460V AC, 125 hp @ 3 Phase, 575V AC, 30 hp @ 3 Phase, 208V AC, 40 hp @ 3 Phase, 208V AC, 50 hp @ 3 Phase, 230V AC, 75 hp @ 3 Phase, 460V AC
Frequency
50/60 Hz
Type
HMI Control

Description

Soft Start, Input Voltage 208 to 690V AC, Output Current 140 A, Output Voltage 208 to 690V AC, 100 hp @ 3 Phase, 460V AC, 125 hp @ 3 Phase, 575V AC, 30 hp @ 3 Phase, 208V AC, 40 hp @ 3 Phase, 208V AC, 50 hp @ 3 Phase, 230V AC, 75 hp @ 3 Phase, 460V AC, Control Voltage 110 to 230V AC, IP20, NEMA 1
