This item is Discontinued.

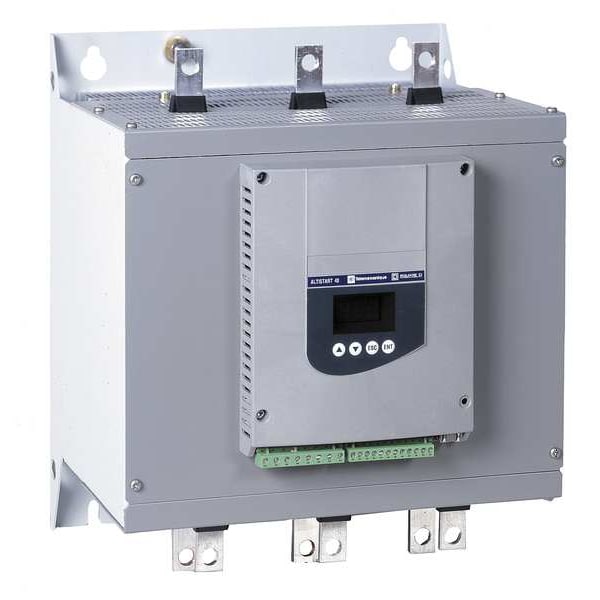

Schneider Electric Soft Start, 208-690VAC, 210A ATS48C21Y

Soft Start, 208-690VAC, 210A (Discontinued)

  • Mfr # ATS48C21Y
  • Zoro # G3555851
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ATS48C21Y
Zoro #
G3555851
UPC #
785901982401
Country of Origin
Multiple

Dimensions

Height
14.96 in
Depth
10.43 in
Width
12.6 in
Overall Height
14.96 in
Overall Depth
10.43 in
Overall Width
12.6 in

Details

Item
Soft Start
Input Voltage
208 to 690V AC
Output Current
210 A
With Bypass / No Bypass
No Bypass
HP @ 3 Phase - 240V
75 hp
HP @ 3 Phase - 480V
150
Inputs/Outputs
4 Logic Inputs, 1 PTC Probe Analog Input, 1 Analog Output, 3 Relay Outputs
Phase
Three
Application
Heavy Duty Industry, Pumps
Ramp Time
1 to 60 sec.
Display
3 Seven -Segment display
Standards
C-tick, CCC, CSA Certified, DNV, EN/IEC 60947-4-2, GOST, NOM 117, SEPRO, TCF, UL Listed
Start Type
Torque Control Start
Control Voltage
110 to 230V AC
Enclosure Rating
IP20, NEMA 1
HP @ 3 Phase - 575V
200 hp
Communication Port
Modbus
IP Rating
20
HP @ 3 Phase - 208V
60 hp
Starting Torque
0% to 400%
Output Voltage
208 to 690V AC
Includes
Exclusive motor Torque Control System (TCS)
Stop Time
1 to 60 sec
HP @ 3 Phase - 460V
150
HP @ 3 Phase - 230V
75
Output Power
125 hp @ 3 Phase, 460V AC, 150 hp @ 3 Phase, 460V AC, 200 hp @ 3 Phase, 575V AC, 50 hp @ 3 Phase, 208V AC, 60 hp @ 3 Phase, 208V AC, 75 hp @ 3 Phase, 230V AC
Frequency
50/60 Hz
Function Type
Start or Stop
Type
HMI Control

Description

Soft Start, Input Voltage 208 to 690V AC, Output Current 210 A, Output Voltage 208 to 690V AC, 125 hp @ 3 Phase, 460V AC, 150 hp @ 3 Phase, 460V AC, 200 hp @ 3 Phase, 575V AC, 50 hp @ 3 Phase, 208V AC, 60 hp @ 3 Phase, 208V AC, 75 hp @ 3 Phase, 230V AC, Control Voltage 110 to 230V AC, IP20, NEMA 1
