This item is Discontinued.

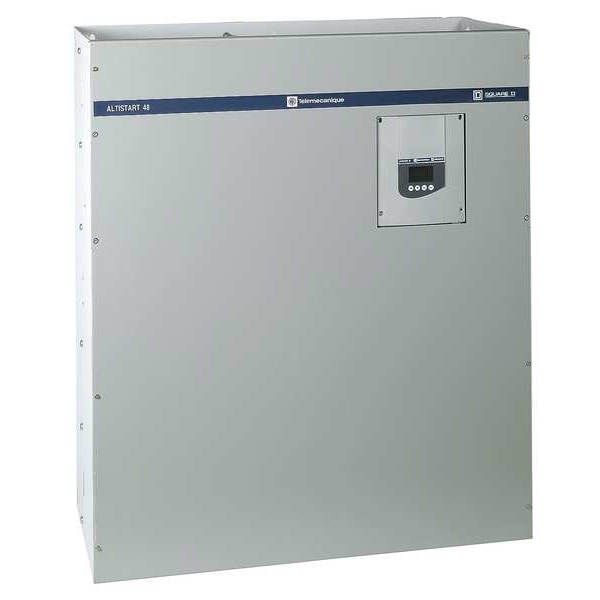

Schneider Electric Soft Start, 208-690VAC, 790A ATS48C79Y

Soft Start, 208-690VAC, 790A (Discontinued)

Mfr # ATS48C79Y
Zoro # G3530676

Get a 10% off coupon

Free 30-day returns Return Policy

Get 30 days to pay with Net 30 Apply Now

Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #

ATS48C79Y

Zoro #

G3530676

UPC #

785901982548

Country of Origin

France

Dimensions

Depth

12.4 in

Height

35.04 in

Width

30.31 in

Overall Width

30.31 in

Overall Height

35.04 in

Overall Depth

12.4 in

Details

Item

Soft Start

Input Voltage

208 to 690V AC

Output Current

790 A

With Bypass / No Bypass

No Bypass

HP @ 3 Phase - 240V

300 hp

HP @ 3 Phase - 480V

600

Inputs/Outputs

4 Logic Inputs, 1 PTC Probe Analog Input, 1 Analog Output, 3 Relay Outputs

Phase

Three

Standards

C-tick, CCC, CSA Certified, DNV, EN/IEC 60947-4-2, GOST, NOM 117, SEPRO, TCF, UL Listed

Stop Time

1 to 60 sec

Control Voltage

110 to 230V AC

IP Rating

Display

3 Seven -Segment display

Application

Heavy Duty Industry, Pumps

HP @ 3 Phase - 575V

800 hp

Communication Port

Modbus

Starting Torque

0% to 400%

Enclosure Rating

IP20, NEMA 1

Start Type

Torque Control Start

Includes

Exclusive motor Torque Control System (TCS)

HP @ 3 Phase - 208V

250 hp

Ramp Time

1 to 60 sec.

Output Voltage

208 to 690V AC

HP @ 3 Phase - 460V

600

HP @ 3 Phase - 230V

300

Frequency

50/60 Hz

Function Type

Start or Stop

Output Power

200 hp @ 3 Phase, 208V AC, 250 hp @ 3 Phase, 208V AC, 300 hp @ 3 Phase, 230V AC, 500 hp @ 3 Phase, 460V AC, 600 hp @ 3 Phase, 460V AC, 800 hp @ 3 Phase, 575V AC

Type

HMI Control

Description

Soft Start, Input Voltage 208 to 690V AC, Output Current 790 A, Output Voltage 208 to 690V AC, 200 hp @ 3 Phase, 208V AC, 250 hp @ 3 Phase, 208V AC, 300 hp @ 3 Phase, 230V AC, 500 hp @ 3 Phase, 460V AC, 600 hp @ 3 Phase, 460V AC, 800 hp @ 3 Phase, 575V AC, Control Voltage 110 to 230V AC, IP20, NEMA 1
