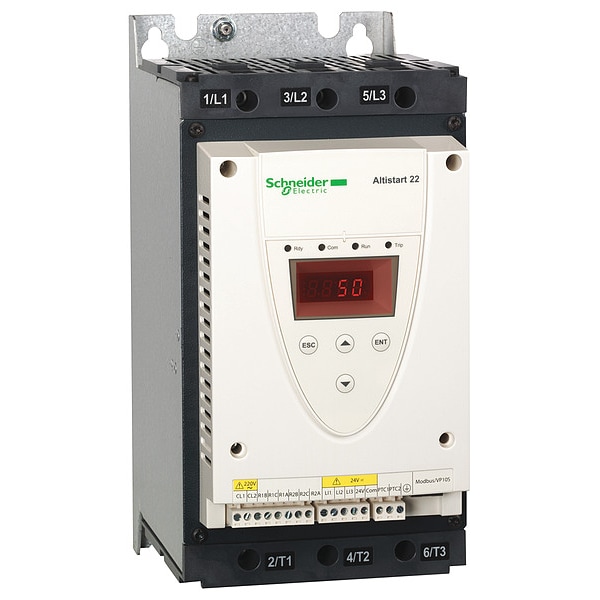

Schneider Electric Soft Start, 230 to 600V AC, 75 A ATS22D75S6 - main

Soft Start, 230 to 600V AC, 75 A

  • Mfr # ATS22D75S6

  • Zoro # G3461596

product price: $1,525.99
/ea
Free Shipping & Returns

Key Features

Output Current
75 A
Frequency
50/60 Hz
Phase
Three
Enclosure Rating
IP20
Start Type
Torque Control Start
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATS22D75S6
Zoro #
G3461596
UPC #
785901688013
Country of Origin
Indonesia

Dimensions

Width
145 mm
Height
295.0 mm
Depth
8.15 in
Overall Width
5.71 in
Overall Height
11.61 in
Overall Depth
8.15 in

Details

Output Current
75 A
Frequency
50/60 Hz
Phase
Three
Enclosure Rating
IP20
Start Type
Torque Control Start
Application
Fans, Pumps
Protects
Phase Failure Line, Thermal Protection Motor, Thermal Protection Starter
Standards
C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST, UL Listed
With Bypass / No Bypass
With Bypass
Item
Soft Start
HP @ 3 Phase - 460V
50
Communication Port
Modbus
Output Voltage
230 to 600V AC
Control Type
3 Phase Asynchronous Induction (Squirrel Cage) Motor
For Use With
Asynchronous Induction (squirrel cage) Motors, Centrifugal Pump
Input Voltage
230 to 600V AC
Inputs/Outputs
3 Logic Inputs, 1 PTC Probe Analog Input, 2 (NC/NO) Relay Outputs
HP @ 3 Phase - 230V
18 1/2 kW
Display
4 LED (Ready, Communication, Run and Trip)
Control Voltage
230V AC
Output Power
18.5 kW @ 3 Phase, 230V AC, 37 kW @ 3 Phase, 400V AC, 37 kW @ 3 Phase, 440V AC, 45 kW @ 3 Phase, 500V AC

Description

Soft Start, Input Voltage 230 to 600V AC, Output Current 75 A, Output Voltage 230 to 600V AC, 18.5 kW @ 3 Phase, 230V AC, 37 kW @ 3 Phase, 400V AC, 37 kW @ 3 Phase, 440V AC, 45 kW @ 3 Phase, 500V AC, Control Voltage 230V AC, IP20
