  11. Soft Start, 380 to 415V AC, 32 A

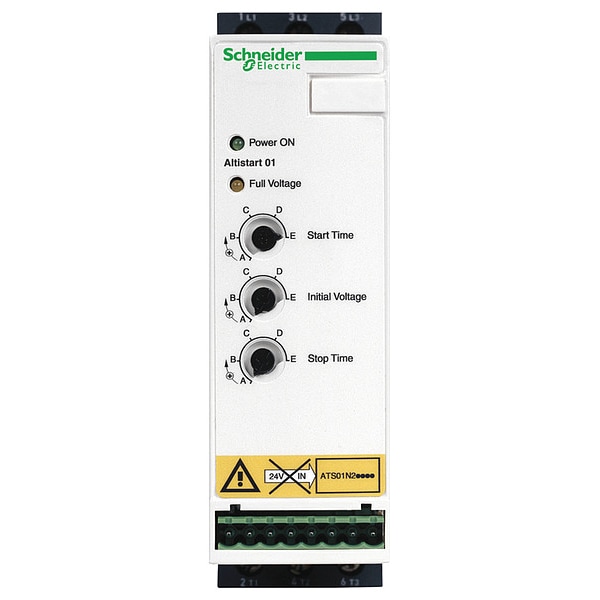

Schneider Electric Soft Start, 380 to 415V AC, 32 A ATS01N232QN - main

Soft Start, 380 to 415V AC, 32 A

  • Mfr # ATS01N232QN

  • Zoro # G3464353

product price: $369.99
/ea
Free Shipping & Returns

Key Features

Output Current
32 A
Frequency
50/60 Hz
Phase
Three
Enclosure Rating
IP20
Start Type
Voltage Ramp Start
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATS01N232QN
Zoro #
G3464353
UPC #
785901677956
Country of Origin
Germany

Dimensions

Width
45 mm
Height
154.0 mm
Depth
5.16 in
Overall Width
1.77 in
Overall Height
6.06 in
Overall Depth
5.16 in

Details

Output Current
32 A
Frequency
50/60 Hz
Phase
Three
Enclosure Rating
IP20
Start Type
Voltage Ramp Start
Application
Asynchronous Motors
Standards
ASME A17.5, B44.1-96, C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST, UL Listed
Stop Time
1 to 10 sec
Starting Torque
30% to 80%
Output Voltage
380 to 415V AC
Inputs/Outputs
3 Logic Inputs, 1 PTC Probe Analog Input, 2 (NC/NO) Relay Outputs
Control Type
2 Phase
For Use With
Asynchronous motor
Display
2 LED (Starter Powered Up, Nominal Voltage Reached)
With Bypass / No Bypass
With Bypass
Item
Soft Start
Input Voltage
380 to 415V AC
Ramp Time
1 to 10 sec.
Output Power
15 kW @ 3 Phase, 380/415V AC

Description

Soft Start, Input Voltage 380 to 415V AC, Output Current 32 A, Output Voltage 380 to 415V AC, 15 kW @ 3 Phase, 380/415V AC, IP20

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
