  11. Soft Start, 380 to 415V AC, 9 A

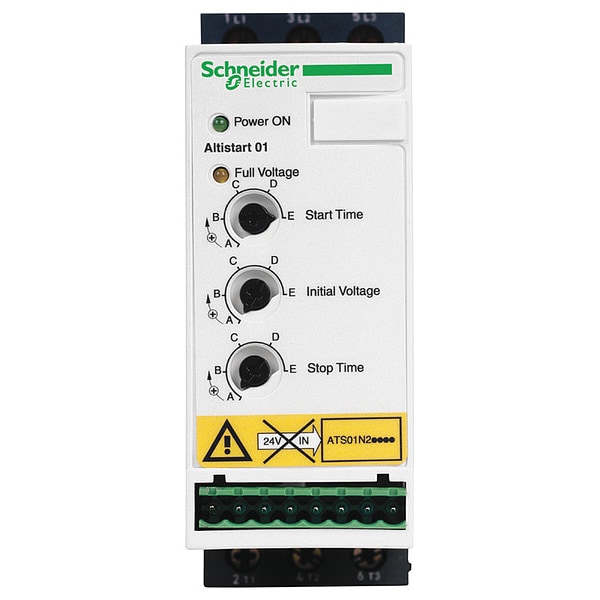

Schneider Electric Soft Start, 380 to 415V AC, 9 A ATS01N209QN - main

Soft Start, 380 to 415V AC, 9 A

  • Mfr # ATS01N209QN

  • Zoro # G3466898

product price: $181.99
/ea
Free Shipping & Returns

Key Features

Output Current
9 A
Frequency
50/60 Hz
Phase
Three
Enclosure Rating
IP20
Start Type
Voltage Ramp Start
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATS01N209QN
Zoro #
G3466898
UPC #
785901578888
Country of Origin
Germany

Dimensions

Width
45 mm
Height
124.0 mm
Depth
5.16 in
Overall Height
4.88 in
Overall Width
1.77 in
Overall Depth
5.16 in

Details

Output Current
9 A
Frequency
50/60 Hz
Phase
Three
Enclosure Rating
IP20
Start Type
Voltage Ramp Start
Application
Asynchronous Motors
Standards
ASME A17.5, B44.1-96, C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST, UL Listed
Stop Time
1 to 10 sec
With Bypass / No Bypass
With Bypass
Item
Soft Start
Control Type
2 Phase
For Use With
Asynchronous motor
Display
2 LED (Starter Powered Up, Nominal Voltage Reached)
Starting Torque
30% to 80%
Output Voltage
380 to 415V AC
Input Voltage
380 to 415V AC
Inputs/Outputs
3 Logic Inputs, 1 PTC Probe Analog Input, 2 (NC/NO) Relay Outputs
Ramp Time
1 to 10 sec.
Output Power
4 kW @ 3 Phase, 380/415V AC

Description

Soft Start, Input Voltage 380 to 415V AC, Output Current 9 A, Output Voltage 380 to 415V AC, 4 kW @ 3 Phase, 380/415V AC, IP20

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
