  11. Soft Start, 50/60 Hz, 208 to 690V AC

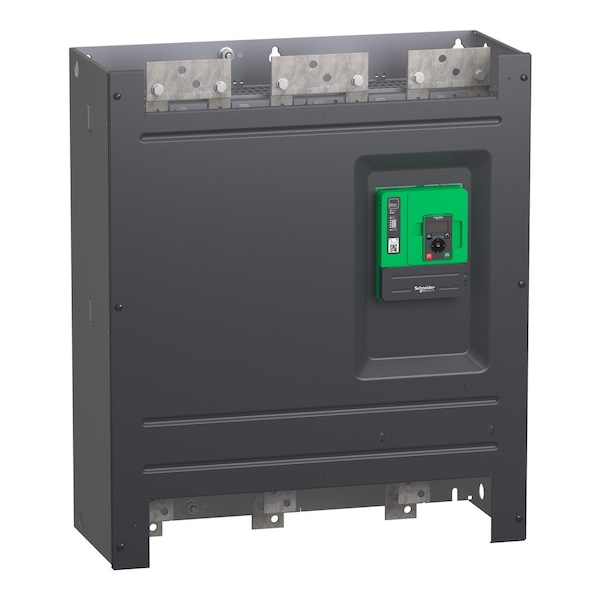

Schneider Electric Soft Start, 50/60 Hz, 208 to 690V AC ATS480M12Y - main

Soft Start, 50/60 Hz, 208 to 690V AC

  • Mfr # ATS480M12Y

  • Zoro # G013038431

product price: $15,661.99
/ea
Item requires special delivery charges. A $195.00 per item surcharge will be applied.

Key Features

Output Current
100 mA
Frequency
50/60 Hz
Phase
Three
Enclosure Rating
IP00
Start Type
Thermal Protection Starter
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATS480M12Y
Zoro #
G013038431
UPC #
3606481089199
Country of Origin
United States

Dimensions

Overall Height
35.04 in
Overall Width
30.31 in
Overall Depth
12.95 in

Details

Output Current
100 mA
Frequency
50/60 Hz
Phase
Three
Enclosure Rating
IP00
Start Type
Thermal Protection Starter
Application
Process and Infrastructures
Protects
Current Overload Motor, Excessive Starting Time, Locked Rotor Motor, Integrated Thermal Protection Motor, Line Supply Phase Loss Line, Line Supply Phase Loss Motor, Motor Phase Loss Motor, Phase Failure Line, Thermal Protection Motor, Thermal Protection Starter, Underload Motor
Standards
ABS, Bureau Veritas, CCC Certified, CCS, CE Certified, China RoHS Regulation, cULus Listed, DNV, EAC, EU RoHS Directive, IEC 60664-1, IEC 60947-4-2, RCM, REACH Regulation, UKCA, UL 60947-4-2, WEEE
Control Voltage
110 to 250V AC
HP @ 3 Phase - 240V
450 hp
Output Voltage
208 to 690V AC
With Bypass / No Bypass
With Bypass
HP @ 3 Phase - 208V
400 hp
Communication Port
Modbus
Item
Soft Start
Input Voltage
208 to 690V AC
HP @ 3 Phase - 480V
1,000 hp
Input Type
Analog, (4) Digital
Output Type
(2) Analog, (2) Digital
Function Type
Start or Stop
Output Power
1000 HP @ 460V AC, 1000 HP @ 575V AC, 1200 HP @ 575V AC, 350 HP @ 208V AC, 350 HP @ 230V AC, 400 HP @ 208V AC, 450 HP @ 230V AC, 800 HP @ 460V AC
HP @ 3 Phase - 230V
450 hp
HP @ 3 Phase - 460V
1,000 hp
HP @ 3 Phase - 575V
1,200 hp

Description

Soft Start, Input Voltage 208 to 690V AC, Output Current 100 mA, Output Voltage 208 to 690V AC, 1000 HP @ 460V AC, 1000 HP @ 575V AC, 1200 HP @ 575V AC, 350 HP @ 208V AC, 350 HP @ 230V AC, 400 HP @ 208V AC, 450 HP @ 230V AC, 800 HP @ 460V AC, Control Voltage 110 to 250V AC, IP00
