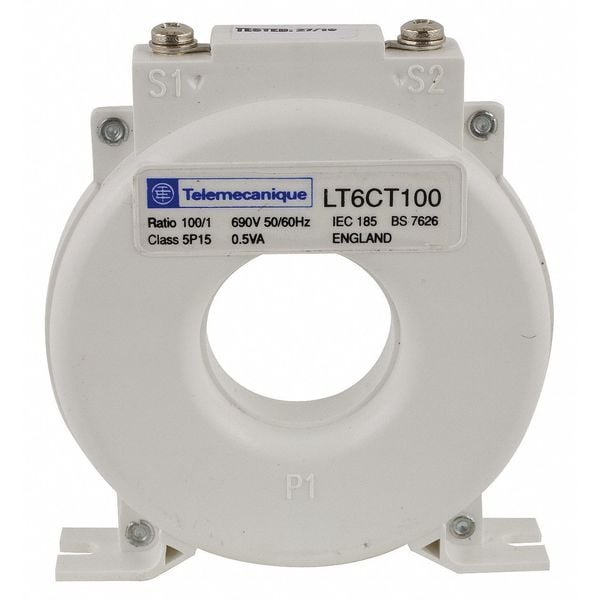

Solid Core Current Transformer, 0 to 100A, 0 to 1A, Screw Terminal

  • Mfr # LT6CT1001

  • Zoro # G3520115

product price:  $495.99
/ea
Free Shipping & Returns

Key Features

Item - Transformer
Solid Core Current Transformer
Primary Range
0 to 100A
Secondary Range
0 to 1A
Hole Dia. - Current Transformer
0.39 in
Electrical Connection - Current Transformer
Screw Terminal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LT6CT1001
Zoro #
G3520115
UPC #
03389110943269
Country of Origin
Korea, Republic of

Dimensions

Hole Dia. - Current Transformer
0.39 in
Overall Depth
0.98 in
Overall Height
4.21 in
Overall Width
3.74 in
Diameter
10 mm
Window Diameter
0.39 in
Manufacturers Warranty Length
18 mo

Details

Item - Transformer
Solid Core Current Transformer
Primary Range
0 to 100A
Secondary Range
0 to 1A
Electrical Connection - Current Transformer
Screw Terminal
Window
Round
For Use With
TeSys T Motor Management System
Item
Solid Core Current Transformer
Standards
BS 7626, EU RoHS, IEC 60185
[Ui] Rated Insulation Voltage
690 V
Maximum Ambient Air Temperature For Operation
50-C
Cable Cross Section
300-300 mm2²
Current Transformer Ratio
100/1
Precision Limit Factor
15
Device Short Name
LT6CT
Range Compatibility
TeSys (TeSys T) motor controller
Accuracy class
class 5P
Transformer Type
Solid Core
Operating Temperature - Maximum
122 Degrees F
Window Shape
Round
Connection
Screw Terminal
Secondary Current - Maximum
1 A
Primary Current - Maximum
100 A

Description

Solid Core Current Transformer, Primary Range 0 to 100A, Secondary Range 0 to 1A, Hole Dia. - Current Transformer 0.39 in, Electrical Connection - Current Transformer Screw Terminal, Window Round, Overall Height 4.21 in, Overall Width 3.74 in, Overall Depth 0.98 in
