  13. Solid State Relay, 1 Phase, Screw Clamp, DIN Rail, SCR

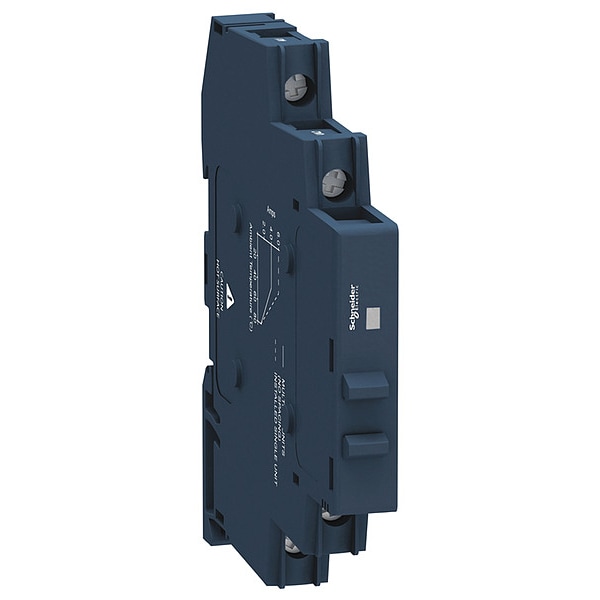

Schneider Electric Solid State Relay, 1 Phase, Screw Clamp, DIN Rail, SCR SSM1A16B7 - main

Solid State Relay, 1 Phase, Screw Clamp, DIN Rail, SCR

  • Mfr # SSM1A16B7

  • Zoro # G0745957

product price: $38.69
/ea

Key Features

Electrical Phase
1
Electrical Connection
Screw Clamp
Mounting Style
DIN Rail
Switch Component Type
SCR
Heat Sink
Integral
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SSM1A16B7
Zoro #
G0745957
UPC #
785901860938
Country of Origin
Mexico

Dimensions

Overall Height - Relay
3.56 in
Body Height
3.55 in
Body Depth
3.29 in
Body Width
0.43 in
Overall Depth
3.29 in
Depth
83.7 mm
Width
11 mm
Height
90.3 mm

Details

Item
Solid State Relay
Electrical Phase
1
Electrical Connection
Screw Clamp
Mounting Style
DIN Rail
Switch Component Type
SCR
Heat Sink
Integral
Finger Safe
Yes
Input Voltage
18 to 36V AC
Case Color
Black
Includes
Single Channel
Contact Form - Relay
SPST-NO
Relay Turns On At
Zero Crossing
Standards
CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed
Response Time
30 msec
Maximum Switching Voltage
4V AC
Minimum Operating Temperature
-22 Degrees F
Input Current
3.5 to 8.5 mA
Minimum Switching Voltage
18V AC
Horsepower @ 240V AC
4/25 hp
Maximum Operating Temperature
176 Degrees F
Insulation Resistance
1,000 megaohm
Drop Out Voltage
1.3V DC
Maximum Capacitance
10 pF
Weight
1.76 oz
Series
Harmony(TM) SSM Relays
Maximum Output Current with Heat Sink
6 A
Dielectric Strength
4,000V AC
Status Indicator
Green LED Indicator
Power Factor
0.5
IP Rating
IP20
Output Voltage Range
24 to 280V AC
Current Type
AC
Switch Configuration
Form A
Maximum Output Current without Heat Sink
6 A
Output Switching Mode
Zero Crossing
Marking
CE
Surge Current
285 A 16.6 ms || 300 A 20 ms
Local Signalling
for input status LED (green)
Capacitance Unbalance
10 pF for input/output
Flame Retardance
V0 conforming to UL 94
Maximum Leakage Current
0.1 mA off-state
Overvoltage Category
III
Number Of Channels
1
Ambient Air Temperature For Storage
-30-100°C
Absolute Maximum Voltage
600 V
Cos Phi
0.5-0.5 (with maximum load)
Product Certifications
CSA || UL
Maximum I²T For Fusing
410 A².s for 10 ms at 50 Hz || 375 A².s for 8.33 ms at 60 Hz
Tightening Torque
0.5 to 0.8 N.m for input || 0.5 to 0.8 N.m for output
Load Current
0.15-6 A
Dv/Dt
500 V/µs off-state at maximum voltage
Pollution Degree
2
Solid State Output Type
zero voltage switching || SCR output
Device Short Name
SSM
Maximum Horse Power Rating
0.16 hp 40°C 240 V AC
Maximum Voltage Drop
<1.3 V on-state
Connections - Terminals
screw terminals 1 x 0.3 to 1 x 1.5 mm², AWG 22 to AWG 16) input || screw terminals 1 x 0.3 to 1 x 2.5 mm², AWG 22 to AWG 14) output
Ambient Air Temperature For Operation
-30-80°C

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 3.5 to 8.5 mA, Input Voltage 18 to 36V AC, Maximum Output Current with Heat Sink 6 A, Maximum Output Current without Heat Sink 6 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail
