  7. Solid State Relay, 3 to 32VDC, 10A

This item is Discontinued.

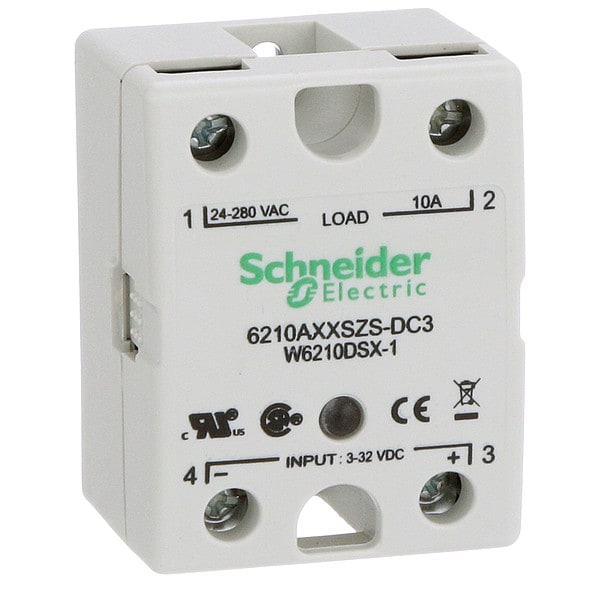

Schneider Electric Solid State Relay, 3 to 32VDC, 10A 6210AXXSZS-DC3

Solid State Relay, 3 to 32VDC, 10A (Discontinued)

  • Mfr # 6210AXXSZS-DC3
  • Zoro # G3295004
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6210AXXSZS-DC3
Zoro #
G3295004
UPC #
-
Country of Origin
Mexico

Dimensions

Body Width - Relay
1.74 in
Overall Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Body Height - Relay
1.4 in
Depth
2.30 in (58.4 mm)
Width
1.85 in (47.1 mm)
Height
1.39 in (35.3 mm)
Body Width
1.85 in
Body Height
1.38 in
Body Depth
2.29 in
Overall Depth
2.29 in

Details

Item
Solid State Relay
Max. Output Amps Without Heat Sink
10.0 A
Item - Relay
Solid State Relay
Turns On At
Zero Cross
Heat Sink
Not Included
Finger Safe
Yes
Phase
1
Mounting - Relay
Surface
Input Power Consumption (Burden)
0.1W
Relay Turns On At
Zero Crossing
Input Voltage
3 to 32V DC
Input or Control Voltage Range
3 to 32VDC
Mounting
Surface
Switch Type
SCR
Max. Output Amps w/Heat Sink
10 A
Output or Controlled Voltage Range
24 to 280V AC
Case Color
Gray
Voltage Output
24 to 280VAC
Standards
CE Certified, CSA Certified, UL Listed
Max. Output w/Heat Sink
10A
Input or Control Voltage
3 to 32V DC
Contact Form - Relay
SPST-NO
Mounting Style
Panel
Electrical Connection
Screw Clamp
Output Voltage Range
24 to 280V AC
Input Current
5 to 40 mA
Switch Configuration
Form A
Electrical Phase
Single
Dielectric Strength
4,000V
Maximum Operating Temperature
176 Degrees F
Insulation Resistance
1,000 megaohm
Series
6000 Series
Voltage Type
AC Output
Weight
3.05 oz
Status Indicator
Green LED Indicator
Maximum Output Current with Heat Sink
10 A
Power Factor
1
IP Rating
IP20
Minimum Operating Temperature
-40 Degrees F
Maximum Output Current without Heat Sink
10 A
Current Type
DC
Switch Component Type
SCR
Response Time
0.1 msec
Output Switching Mode
Zero Crossing
Drop Out Voltage
1.6V DC
Thermal Resistance
1.48°C/W
Must Release Voltage
1 V
Switch Function
SPST
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Leakage Current
10 mA at off-state
Input Current Limits
5 to 40 mA at 5 V DC typical
Protection Technology
Current limiter
Output Voltage
24...280 V AC
Tightening Torque
10 lb.in for input; 20 lb.in for output
Maximum I²t for fusing
60 A².s 8.3 ms
Screw Type
M3.5; M4
Switching Device
SCR output; Zero voltage switching
Surge Current
83 A 16.6 ms
Network Number of Phases
1 phase
Range
Legacy
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Contacts Type and Composition
NO
Local Signalling
for input status 1 LED (green)
DV/dt
200 V/µs off-state at maximum rated voltage
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Control Circuit Voltage
3...32 V DC
Product Certifications
UL; CSA; CE
maximum output current
10 A AC
Maximum Peak Voltage
600 V
Insulating Resistance
1 GΩ
Voltage Drop
<1.6 V on-state AC
Holding Current
50 mA

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 5 to 40 mA, Input Voltage 3 to 32V DC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
