  7. Solid State Relay, 3 to 32VDC, 10A

This item is Discontinued.

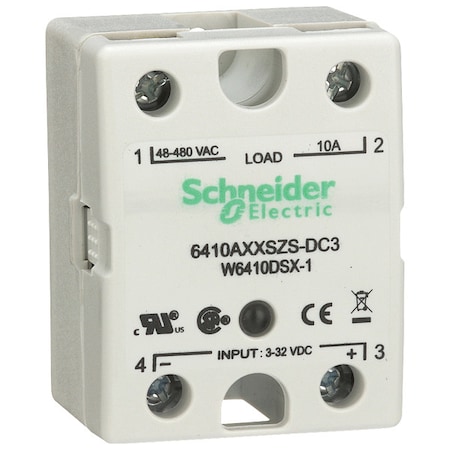

Schneider Electric Solid State Relay, 3 to 32VDC, 10A 6410AXXSZS-DC3

Solid State Relay, 3 to 32VDC, 10A (Discontinued)

  • Mfr # 6410AXXSZS-DC3
  • Zoro # G1452622
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6410AXXSZS-DC3
Zoro #
G1452622
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Height - Relay
1.4 in
Body Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Body Width - Relay
1.74 in
Depth
2.30 in (58.4 mm)
Width
1.85 in (47.1 mm)
Height
1.39 in (35.3 mm)
Overall Depth
2.29 in
Body Height
1.38 in
Body Depth
2.29 in
Body Width
1.85 in

Details

Item
Solid State Relay
Switch Type
SCR
Input Voltage
4 to 32V DC
Max. Output Amps Without Heat Sink
10.0 A
Max. Output Amps w/Heat Sink
10 A
Heat Sink
Not Included
Phase
1
Standards
CE Certified, CSA Certified, UL Listed
Voltage Output
48 to 480VAC
Output or Controlled Voltage Range
48 to 480V AC
Case Color
Gray
Item - Relay
Solid State Relay
Mounting - Relay
Surface
Input Power Consumption (Burden)
0.2W
Contact Form - Relay
SPST-NO
Turns On At
Zero Cross
Finger Safe
Yes
Relay Turns On At
Zero Crossing
Mounting
Surface
Input or Control Voltage Range
3 to 32VDC
Input or Control Voltage
3 to 32V DC
Max. Output w/Heat Sink
10A
Mounting Style
Panel
Electrical Connection
Screw Clamp
Minimum Operating Temperature
-40 Degrees F
Insulation Resistance
1,000 megaohm
Maximum Operating Temperature
176 Degrees F
Maximum Output Current with Heat Sink
10 A
IP Rating
IP20
Status Indicator
Green LED Indicator
Input Current
5 to 40 mA
Current Type
DC
Maximum Output Current without Heat Sink
10 A
Switch Configuration
Form A
Power Factor
1
Drop Out Voltage
1.6V DC
Dielectric Strength
4,000V
Switch Component Type
SCR
Response Time
0.1 msec
Voltage Type
AC Output
Output Voltage Range
48 to 530V AC
Electrical Phase
Single
Weight
3.7 oz
Series
6000 Series
Output Switching Mode
Zero Crossing
Switching Device
SCR output; Zero voltage switching
Control Circuit Voltage
4...32 V DC
Holding Current
150 mA
Contacts Type and Composition
NO
Local Signalling
for input status 1 LED (green)
Input Current Limits
5 to 40 mA at 5 V DC typical
Screw Type
M3.5; M4
Thermal Resistance
1.02°C/W
Output Voltage
48...530 V AC
DV/dt
500 V/µs off-state at maximum rated voltage
Product Certifications
UL; CSA; CE
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Maximum I²t for fusing
60 A².s 8.3 ms
maximum output current
10 A AC
Surge Current
120 A 16.6 ms
Voltage Drop
<1.6 V on-state AC
Range
Legacy
Leakage Current
10 mA at off-state
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Must Release Voltage
1 V
Switch Function
SPST
Network Number of Phases
1 phase
Maximum Peak Voltage
800 V
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Insulating Resistance
1 GΩ
Tightening Torque
10 lb.in for input; 20 lb.in for output
Maximum I²t for fusing
60 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 5 to 40 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 530V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
