  13. Solid State Relay, 3 to 32VDC, 25A
This item is Discontinued.

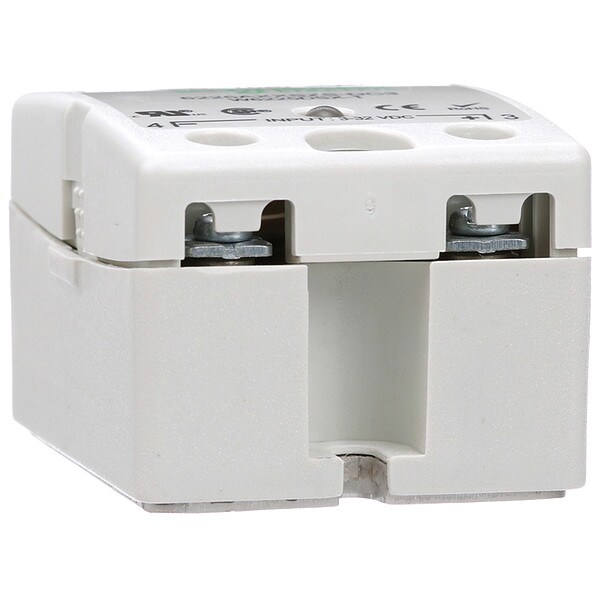

Schneider Electric Solid State Relay, 3 to 32VDC, 25A 6225AXXSZS-DC3

Solid State Relay, 3 to 32VDC, 25A (Discontinued)

  • Mfr # 6225AXXSZS-DC3
  • Zoro # G2084844
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6225AXXSZS-DC3
Zoro #
G2084844
UPC #
-
Country of Origin
Multiple

Dimensions

Body Height - Relay
1.4 in
Body Width - Relay
1.74 in
Body Depth - Relay
2.3 in
Overall Height - Relay
1.4 in
Depth
2.30 in (58.4 mm)
Width
1.85 in (47.1 mm)
Height
1.39 in (35.3 mm)
Body Depth
2.29 in
Overall Depth
2.29 in
Body Width
1.85 in
Body Height
1.38 in

Details

Item
Solid State Relay
Input Power Consumption (Burden)
0.1W
Item - Relay
Solid State Relay
Phase
1
Max. Output Amps Without Heat Sink
12.0 A
Switch Type
SCR
Input Voltage
3 to 32V DC
Mounting
Surface
Voltage Output
24 to 280VAC
Contact Form - Relay
SPST-NO
Case Color
Gray
Max. Output w/Heat Sink
25A
Heat Sink
Not Included
Mounting - Relay
Surface
Relay Turns On At
Zero Crossing
Input or Control Voltage Range
3 to 32VDC
Max. Output Amps w/Heat Sink
25 A
Standards
CE Certified, CSA Certified, UL Listed
Output or Controlled Voltage Range
24 to 280V AC
Finger Safe
Yes
Turns On At
Zero Cross
Input or Control Voltage
3 to 32V DC
Mounting Style
Panel
Electrical Connection
Screw Clamp
Output Switching Mode
Zero Crossing
Maximum Operating Temperature
176 Degrees F
Switch Configuration
Form A
Drop Out Voltage
1.6V DC
Series
6000 Series
Output Voltage Range
24 to 280V AC
Insulation Resistance
1,000 megaohm
Voltage Type
AC Output
Switch Component Type
SCR
Dielectric Strength
4,000V
Status Indicator
Green LED Indicator
Input Current
5 to 40 mA
Power Factor
0.5
Response Time
0.1 msec
Electrical Phase
Single
Current Type
DC
IP Rating
IP20
Maximum Output Current without Heat Sink
12 A
Weight
3.05 oz
Maximum Output Current with Heat Sink
25 A
Minimum Operating Temperature
-40 Degrees F
Tightening Torque
10 lb.in for input; 20 lb.in for output
Surge Current
250 A 16.6 ms
Screw Type
M3.5; M6
Switch Function
SPST
Local Signalling
for input status 1 LED (green)
Protection Technology
Current limiter
Control Circuit Voltage
3...32 V DC
Network Number of Phases
1 phase
Maximum Peak Voltage
600 V
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Maximum I²t for fusing
250 A².s 8.3 ms
Switching Device
SCR output; Zero voltage switching
Leakage Current
10 mA at off-state
maximum output current
25 A AC
Output Voltage
24...280 V AC
Insulating Resistance
1 GΩ
Input Current Limits
5 to 40 mA at 5 V DC typical
Contacts Type and Composition
NO
Voltage Drop
<1.6 V on-state AC
Thermal Resistance
1.02°C/W
DV/dt
500 V/µs off-state at maximum rated voltage
Holding Current
120 mA
Product Certifications
UL; CSA; CE
Range
Legacy
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Must Release Voltage
1 V
Maximum I²t for fusing
250 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 5 to 40 mA, Input Voltage 3 to 32V DC, Maximum Output Current with Heat Sink 25 A, Maximum Output Current without Heat Sink 12 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
