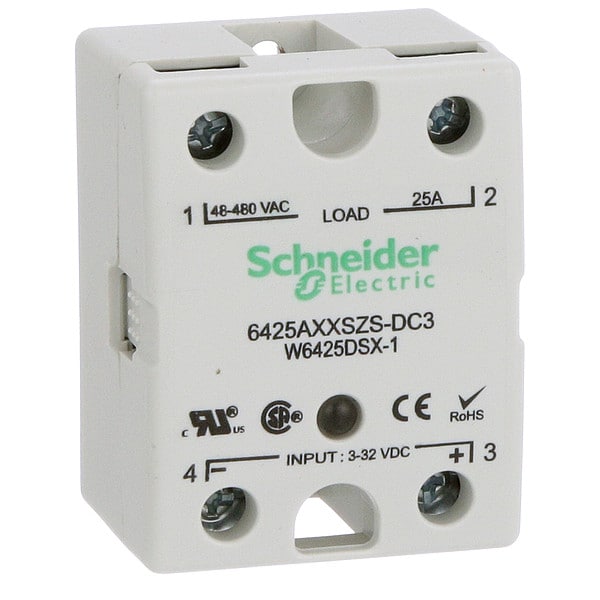

Schneider Electric Solid State Relay, 3 to 32VDC, 25A 6425AXXSZS-DC3

Solid State Relay, 3 to 32VDC, 25A (Discontinued)

  • Mfr # 6425AXXSZS-DC3
  • Zoro # G1059441
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6425AXXSZS-DC3
Zoro #
G1059441
UPC #
-
Country of Origin
Multiple

Dimensions

Body Width - Relay
1.74 in
Overall Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Body Height - Relay
1.4 in
Depth
2.30 in (58.4 mm)
Width
1.85 in (47.1 mm)
Height
1.39 in (35.3 mm)
Body Depth
2.29 in
Body Height
1.38 in
Overall Depth
2.29 in
Body Width
1.85 in

Details

Item
Solid State Relay
Input Power Consumption (Burden)
0.2W
Input or Control Voltage
3 to 32V DC
Max. Output Amps Without Heat Sink
12.0 A
Max. Output Amps w/Heat Sink
25 A
Item - Relay
Solid State Relay
Input Voltage
4 to 32V DC
Max. Output w/Heat Sink
25A
Input or Control Voltage Range
3 to 32VDC
Finger Safe
Yes
Voltage Output
48 to 480VAC
Turns On At
Zero Cross
Contact Form - Relay
SPST-NO
Mounting - Relay
Surface
Switch Type
SCR
Case Color
Gray
Standards
CE Certified, CSA Certified, UL Listed
Phase
1
Output or Controlled Voltage Range
48 to 480V AC
Relay Turns On At
Zero Crossing
Mounting
Surface
Heat Sink
Not Included
Mounting Style
Panel
Electrical Connection
Screw Clamp
Maximum Output Current with Heat Sink
25 A
Electrical Phase
Single
Weight
3.7 oz
Output Voltage Range
48 to 530V AC
Power Factor
1
IP Rating
IP20
Voltage Type
AC Output
Current Type
DC
Response Time
0.1 msec
Dielectric Strength
4,000V
Drop Out Voltage
1.6V DC
Maximum Output Current without Heat Sink
12 A
Switch Component Type
SCR
Status Indicator
Green LED Indicator
Output Switching Mode
Zero Crossing
Input Current
5 to 40 mA
Insulation Resistance
1,000 megaohm
Series
6000 Series
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
176 Degrees F
Switch Configuration
Form A
Leakage Current
1 mA at off-state
Holding Current
150 mA
Contacts Type and Composition
NO
Must Release Voltage
1 V
Local Signalling
for input status 1 LED (green)
Control Circuit Voltage
4...32 V DC
maximum output current
25 A AC
Tightening Torque
10 lb.in for input; 20 lb.in for output
Voltage Drop
<1.6 V on-state AC
Maximum I²t for fusing
259 A².s 8.3 ms
Switching Device
SCR output; Zero voltage switching
Maximum Peak Voltage
800 V
Output Voltage
48...530 V AC
DV/dt
500 V/µs off-state at maximum rated voltage
Insulating Resistance
1 GΩ
Input Current Limits
5 to 40 mA at 5 V DC typical
Range
Legacy
Product Certifications
UL; CSA; CE
Thermal Resistance
1.02°C/W
Surge Current
250 A 16.6 ms
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Screw Type
M3.5; M6
Network Number of Phases
1 phase
Switch Function
SPST
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Maximum I²t for fusing
259 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 5 to 40 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 25 A, Maximum Output Current without Heat Sink 12 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 530V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
