This item is Discontinued.

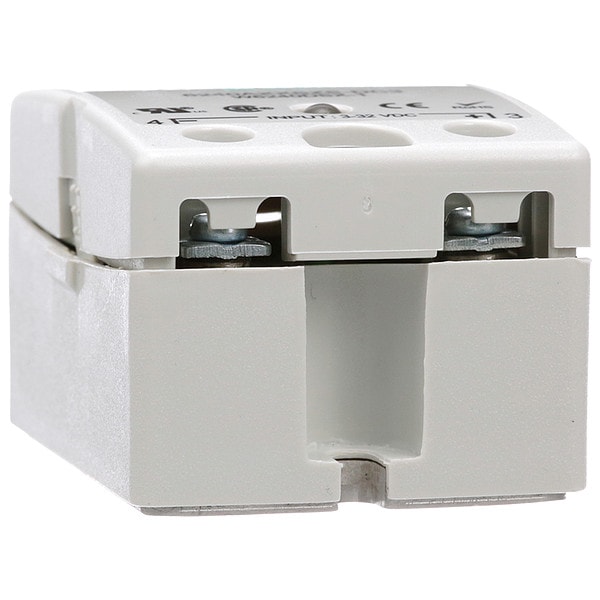

Schneider Electric Solid State Relay, 3 to 32VDC, 40A 6240AXXSZS-DC3

Solid State Relay, 3 to 32VDC, 40A (Discontinued)

  • Mfr # 6240AXXSZS-DC3
  • Zoro # G3110895
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6240AXXSZS-DC3
Zoro #
G3110895
UPC #
00820646856355
Country of Origin
Mexico

Dimensions

Overall Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Body Height - Relay
1.4 in
Body Width - Relay
1.74 in
Depth
1.78 in (45.22 mm)
Height
1.39 in (35.3 mm)
Width
1.85 in (47.1 mm)
Body Depth
1.78 in
Overall Depth
1.78 in
Body Height
1.38 in
Body Width
1.85 in

Details

Item
Solid State Relay
Case Color
Gray
Heat Sink
Not Included
Input or Control Voltage Range
3 to 32VDC
Switch Type
SCR
Standards
CE Certified, CSA Certified, UL Listed
Relay Turns On At
Zero Crossing
Max. Output Amps w/Heat Sink
40 A
Output or Controlled Voltage Range
24 to 280V AC
Phase
1
Input or Control Voltage
3 to 32V DC
Max. Output w/Heat Sink
40A
Finger Safe
Yes
Input Power Consumption (Burden)
0.1W
Mounting - Relay
Surface
Contact Form - Relay
SPST-NO
Mounting
Surface
Max. Output Amps Without Heat Sink
Not Recommended
Voltage Output
24 to 280VAC
Item - Relay
Solid State Relay
Turns On At
Zero Cross
Input Voltage
3 to 32V DC
Mounting Style
Panel
Electrical Connection
Screw Clamp
Switch Component Type
SCR
Power Factor
0.5
Weight
3.05 oz
Maximum Operating Temperature
176 Degrees F
Output Switching Mode
Zero Crossing
Drop Out Voltage
1.6V DC
Maximum Output Current with Heat Sink
40 A
Current Type
DC
Switch Configuration
Form A
Electrical Phase
Single
Input Current
5 to 40 mA
Output Voltage Range
24 to 280V AC
Maximum Output Current without Heat Sink
Not Recommended
IP Rating
IP20
Minimum Operating Temperature
-40 Degrees F
Insulation Resistance
1,000 megaohm
Voltage Type
AC Output
Status Indicator
Green LED Indicator
Dielectric Strength
4,000V
Response Time
0.1 msec
Series
6000 Series
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
DV/dt
500 V/µs off-state at maximum rated voltage
Input Current Limits
5 to 40 mA at 5 V DC typical
Holding Current
250 mA
Surge Current
625 A 16.6 ms
Product Certifications
UL; CSA; CE
Screw Type
M3.5; M6
Local Signalling
for input status 1 LED (green)
maximum output current
40 A AC
Tightening Torque
10 lb.in for input; 20 lb.in for output
Switching Device
SCR output; Zero voltage switching
Switch Function
SPST
Control Circuit Voltage
3...32 V DC
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Output Voltage
24...280 V AC
Thermal Resistance
0.9°C/W
Protection Technology
Current limiter
Range
Legacy
Voltage Drop
<1.6 V on-state AC
Leakage Current
10 mA at off-state
Maximum I²t for fusing
625 A².s 8.3 ms
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Maximum Peak Voltage
600 V
Contacts Type and Composition
NO
Must Release Voltage
1 V
Insulating Resistance
1 GΩ
Network Number of Phases
1 phase
Maximum I²t for fusing
625 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 5 to 40 mA, Input Voltage 3 to 32V DC, Maximum Output Current with Heat Sink 40 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
