  7. Solid State Relay, 3 to 32VDC, 45A

This item is Discontinued.

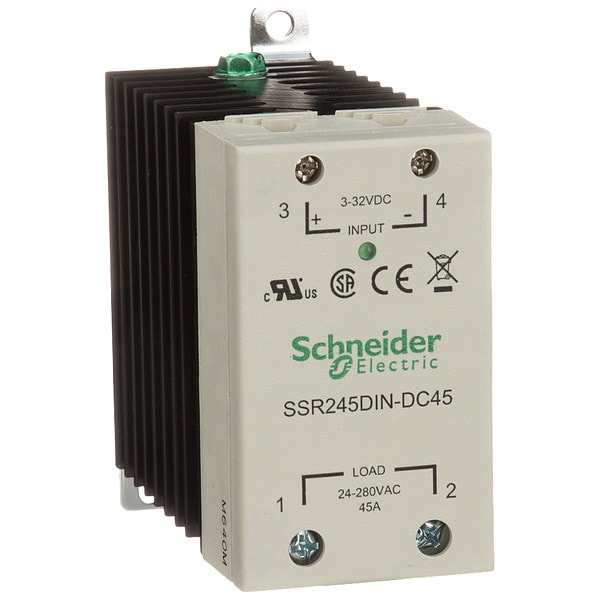

Schneider Electric Solid State Relay, 3 to 32VDC, 45A SSR245DIN-DC45

Solid State Relay, 3 to 32VDC, 45A (Discontinued)

  • Mfr # SSR245DIN-DC45
  • Zoro # G3024707
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SSR245DIN-DC45
Zoro #
G3024707
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Height - Relay
4.2 in
Body Depth - Relay
1.79 in
Body Width - Relay
3.1 in
Body Height - Relay
4.2 in
Depth
3.10 in (78.7 mm)
Width
1.79 in (45.5 mm)
Height
4.20 in (106.7 mm)
Body Depth
4.2 in
Body Height
3.1 in
Overall Depth
4.2 in
Body Width
1.79 in

Details

Item
Solid State Relay
Voltage Output
24 to 280VAC
Heat Sink
Integral
Max. Output Amps Without Heat Sink
45.0 A Integral Heat Sink
Contact Form - Relay
SPST-NO
Mounting
DIN or Flange
Input Voltage
3 to 32V DC
Relay Turns On At
Zero Crossing
Case Color
Gray/Black
Finger Safe
Yes
Max. Output Amps w/Heat Sink
45 A
Switch Type
SCR
Mounting - Relay
DIN Rail, Surface
Standards
CE Certified, CSA Certified
Max. Output w/Heat Sink
45A
Item - Relay
Solid State Relay
Input Power Consumption (Burden)
0.3 to 0.4W
Input or Control Voltage Range
3 to 32VDC
Output or Controlled Voltage Range
24 to 280V AC
Turns On At
Zero Cross
Phase
1
Includes
Integral Heat Sink
Input or Control Voltage
3 to 32V DC
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
Electrical Phase
Single
Weight
1.05 lb
Response Time
0.1 msec
Switch Configuration
Form A
Maximum Output Current without Heat Sink
45 A
Current Type
DC
Input Current
17 mA
Maximum Switching Voltage
1V DC
Output Voltage Range
24 to 280V AC
Minimum Switching Voltage
4V DC
Voltage Type
AC Output
Minimum Operating Temperature
-40 Degrees F
Series
SSRDIN Series
Maximum Output Current with Heat Sink
45 A
Status Indicator
Green LED Indicator
Output Switching Mode
Zero Crossing
Switch Component Type
SCR
Maximum Operating Temperature
176 Degrees F
Drop Out Voltage
1.6V DC
Range
Legacy
Product Certifications
CSA; CE
Switching Voltage
4 V DC turn-on; 1 V DC turn-off
Surge Current
625 A 16.6 ms
Leakage Current
10 mA at off-state
Local Signalling
for input status 1 LED (green)
Mounting Support
Panel; DIN rail
Switch Function
SPST
Voltage Drop
<1.6 V on-state
Switching Device
SCR output; Zero voltage switching
Maximum Peak Voltage
600 V
Input Current Limits
17 mA at 5 V DC typical
DV/dt
500 V/µs off-state maximum
Network Number of Phases
1 phase
Connections Terminals
Input screw AWG 12); Output screw AWG 8)
Contacts Type and Composition
NO
Tightening Torque
0.6...0.7 N.m for input; 1.1...1.7 N.m for output
Output Voltage
24...280 V AC
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Maximum I²t for fusing
1621 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 17 mA, Input Voltage 3 to 32V DC, Maximum Output Current with Heat Sink 45 A, Maximum Output Current without Heat Sink 45 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel, Switch Configuration Form A, Voltage Type AC Output
