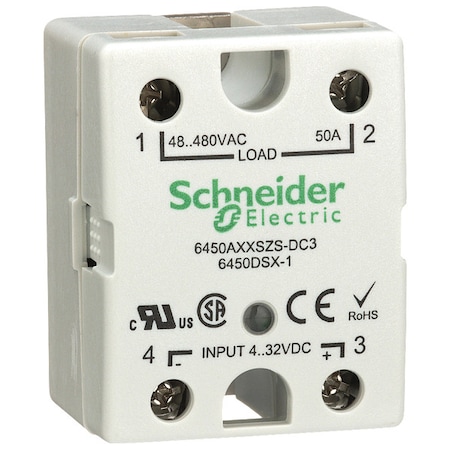

Schneider Electric Solid State Relay, 3 to 32VDC, 50A 6450AXXSZS-DC3

Solid State Relay, 3 to 32VDC, 50A (Discontinued)

  • Mfr # 6450AXXSZS-DC3
  • Zoro # G3117344
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6450AXXSZS-DC3
Zoro #
G3117344
UPC #
-
Country of Origin
Multiple

Dimensions

Body Height - Relay
1.4 in
Body Width - Relay
1.74 in
Overall Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Depth
2.30 in (58.4 mm)
Height
1.39 in (35.3 mm)
Width
1.85 in (47.1 mm)
Body Depth
2.29 in
Body Width
1.85 in
Overall Depth
2.29 in
Body Height
1.38 in

Details

Item
Solid State Relay
Item - Relay
Solid State Relay
Output or Controlled Voltage Range
48 to 480V AC
Mounting
Surface
Max. Output Amps w/Heat Sink
50 A
Case Color
Gray
Phase
1
Mounting - Relay
Surface
Switch Type
SCR
Relay Turns On At
Zero Crossing
Voltage Output
48 to 480VAC
Input or Control Voltage Range
3 to 32VDC
Finger Safe
Yes
Contact Form - Relay
SPST-NO
Max. Output Amps Without Heat Sink
12.0 A
Heat Sink
Not Included
Turns On At
Zero Cross
Input Voltage
4 to 32V DC
Standards
CE Certified, CSA Certified, UL Listed
Input Power Consumption (Burden)
0.2W
Max. Output w/Heat Sink
50A
Input or Control Voltage
3 to 32V DC
Mounting Style
Panel
Electrical Connection
Screw Clamp
Power Factor
0.5
Status Indicator
Green LED Indicator
Weight
3.7 oz
Switch Configuration
Form A
Current Type
DC
Switch Component Type
SCR
Output Voltage Range
48 to 530V AC
IP Rating
IP20
Voltage Type
AC Output
Series
6000 Series
Electrical Phase
Single
Minimum Operating Temperature
-40 Degrees F
Input Current
5 to 40 mA
Output Switching Mode
Zero Crossing
Maximum Operating Temperature
176 Degrees F
Drop Out Voltage
1.6V DC
Response Time
0.1 msec
Dielectric Strength
4,000V
Maximum Output Current without Heat Sink
12 A
Insulation Resistance
1,000 megaohm
Maximum Output Current with Heat Sink
50 A
DV/dt
500 V/µs off-state at maximum rated voltage
Local Signalling
for input status 1 LED (green)
Product Certifications
UL; CSA; CE
Maximum Peak Voltage
800 V
Output Voltage
48...530 V AC
Tightening Torque
10 lb.in for input; 20 lb.in for output
Network Number of Phases
1 phase
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Leakage Current
10 mA at off-state
Switching Device
SCR output; Zero voltage switching
Holding Current
150 mA
Must Release Voltage
1 V
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Screw Type
M3.5; M6
Input Current Limits
5 to 40 mA at 5 V DC typical
Protection Type
Reverse polarity protection
Insulating Resistance
1 GΩ
Contacts Type and Composition
NO
Control Circuit Voltage
4...32 V DC
Maximum I²t for fusing
1035 A².s 8.3 ms
Surge Current
625 A 16.6 ms
Thermal Resistance
0.63°C/W
Voltage Drop
<1.6 V on-state AC
maximum output current
50 A AC
Switch Function
SPST
Range
Legacy
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Maximum I²t for fusing
1035 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 5 to 40 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 50 A, Maximum Output Current without Heat Sink 12 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 530V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
