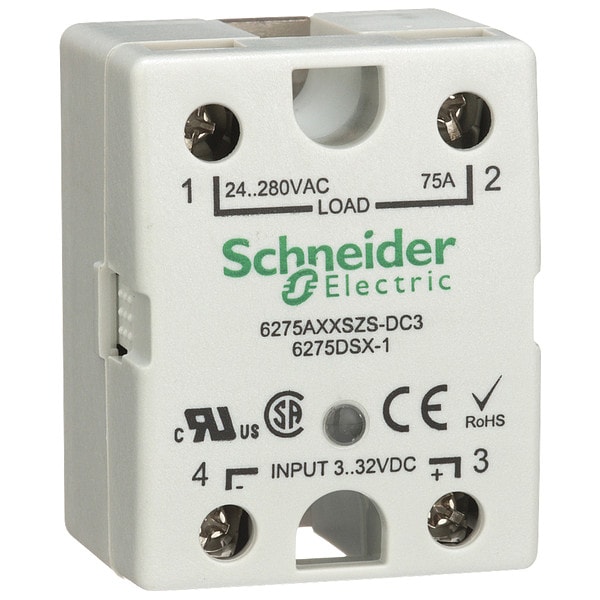

Schneider Electric Solid State Relay, 3 to 32VDC, 75A 6275AXXSZS-DC3

Solid State Relay, 3 to 32VDC, 75A (Discontinued)

  • Mfr # 6275AXXSZS-DC3
  • Zoro # G2131893
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6275AXXSZS-DC3
Zoro #
G2131893
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Height - Relay
1.4 in
Body Width - Relay
1.74 in
Body Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Depth
2.30 in (58.4 mm)
Width
1.85 in (47.1 mm)
Height
1.39 in (35.3 mm)
Overall Depth
2.29 in
Body Depth
2.29 in
Body Height
1.38 in
Body Width
1.85 in

Details

Item
Solid State Relay
Finger Safe
Yes
Voltage Output
24 to 280VAC
Max. Output Amps w/Heat Sink
75 A
Turns On At
Zero Cross
Phase
1
Input Voltage
3 to 32V DC
Max. Output Amps Without Heat Sink
Not Recommended
Relay Turns On At
Zero Crossing
Output or Controlled Voltage Range
24 to 280V AC
Standards
CE Certified, CSA Certified, UL Listed
Max. Output w/Heat Sink
75A
Input Power Consumption (Burden)
0.1W
Heat Sink
Not Included
Mounting
Surface
Case Color
Gray
Switch Type
SCR
Item - Relay
Solid State Relay
Input or Control Voltage
3 to 32V DC
Mounting - Relay
Surface
Contact Form - Relay
SPST-NO
Input or Control Voltage Range
3 to 32VDC
Mounting Style
Panel
Electrical Connection
Screw Clamp
Maximum Output Current without Heat Sink
Not Recommended
Input Current
5 to 40 mA
Minimum Operating Temperature
-40 Degrees F
Series
6000 Series
Status Indicator
Green LED Indicator
Switch Component Type
SCR
IP Rating
IP20
Current Type
DC
Response Time
0.1 msec
Maximum Operating Temperature
176 Degrees F
Weight
3.7 oz
Insulation Resistance
1,000 megaohm
Power Factor
1
Dielectric Strength
4,000V
Electrical Phase
Single
Switch Configuration
Form A
Maximum Output Current with Heat Sink
75 A
Voltage Type
AC Output
Output Voltage Range
24 to 280V AC
Drop Out Voltage
1.6V DC
Output Switching Mode
Zero Crossing
Must Release Voltage
1 V
Surge Current
625 A 16.6 ms
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
DV/dt
500 V/µs off-state at maximum rated voltage
Tightening Torque
10 lb.in for input; 20 lb.in for output
Thermal Resistance
0.31°C/W
Maximum Peak Voltage
600 V
Maximum I²t for fusing
4150 A².s 8.3 ms
Network Number of Phases
1 phase
Leakage Current
1 mA at off-state
Input Current Limits
5 to 40 mA at 5 V DC typical
Range
Legacy
Control Circuit Voltage
3...32 V DC
Holding Current
250 mA
Switching Device
SCR output; Zero voltage switching
Contacts Type and Composition
NO
Insulating Resistance
1 GΩ
Product Certifications
UL; CSA; CE
Screw Type
M3.5; M6
Output Voltage
24...280 V AC
Local Signalling
for input status 1 LED (green)
Voltage Drop
<1.6 V on-state AC
maximum output current
75 A AC
Switch Function
SPST

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 5 to 40 mA, Input Voltage 3 to 32V DC, Maximum Output Current with Heat Sink 75 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
