  7. Solid State Relay, 90 to 280VAC, 10A

This item is Discontinued.

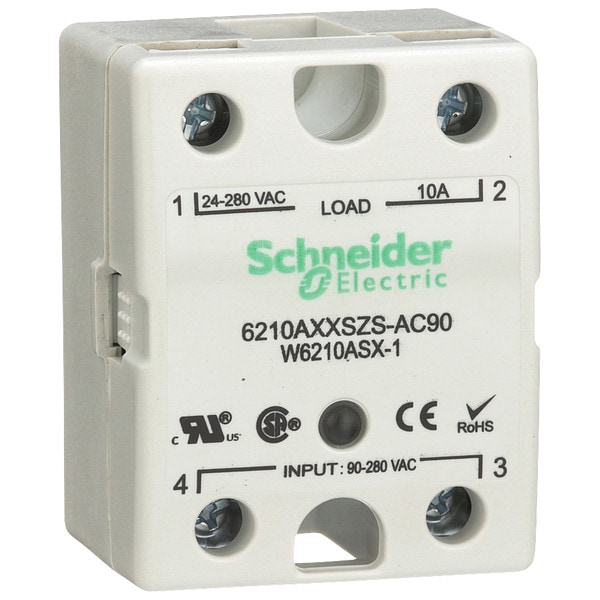

Schneider Electric Solid State Relay, 90 to 280VAC, 10A 6210AXXSZS-AC90

Solid State Relay, 90 to 280VAC, 10A (Discontinued)

  • Mfr # 6210AXXSZS-AC90
  • Zoro # G1364431
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6210AXXSZS-AC90
Zoro #
G1364431
UPC #
-
Country of Origin
Mexico

Dimensions

Body Width - Relay
1.74 in
Overall Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Body Height - Relay
1.4 in
Depth
2.30 in (58.4 mm)
Width
1.85 in (47.1 mm)
Height
1.39 in (35.3 mm)
Body Height
1.38 in
Body Width
1.85 in
Body Depth
2.29 in
Overall Depth
2.29 in

Details

Item
Solid State Relay
Relay Turns On At
Zero Crossing
Input or Control Voltage
90 to 280V AC
Mounting - Relay
Surface
Max. Output Amps Without Heat Sink
10.0 A
Phase
1
Voltage Output
24 to 280VAC
Standards
CE Certified, CSA Certified, UL Listed
Input Voltage
90 to 280V AC
Input or Control Voltage Range
90 to 280VAC
Finger Safe
Yes
Max. Output w/Heat Sink
10A
Input Power Consumption (Burden)
0.2 to 1.0VA
Case Color
Gray
Max. Output Amps w/Heat Sink
10 A
Item - Relay
Solid State Relay
Switch Type
SCR
Mounting
Surface
Turns On At
Zero Cross
Contact Form - Relay
SPST-NO
Output or Controlled Voltage Range
24 to 280V AC
Heat Sink
Not Included
Mounting Style
Panel
Electrical Connection
Screw Clamp
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
176 Degrees F
Power Factor
1
Series
6000 Series
Maximum Output Current with Heat Sink
10 A
Electrical Phase
Single
Maximum Output Current without Heat Sink
10 A
Voltage Type
AC Output
Weight
3.7 oz
Insulation Resistance
1,000 megaohm
Output Voltage Range
24 to 280V AC
Status Indicator
Green LED Indicator
Switch Component Type
SCR
Output Switching Mode
Zero Crossing
Switch Configuration
Form A
Current Type
AC
Input Current
2 to 4 mA
IP Rating
IP20
Drop Out Voltage
1.6V DC
Dielectric Strength
4,000V
Response Time
10 msec
Insulating Resistance
1 GΩ
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Screw Type
M3.5; M4
Holding Current
40 mA
Tightening Torque
10 lb.in for input; 20 lb.in for output
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
DV/dt
500 V/µs off-state at maximum rated voltage
Product Certifications
UL; CSA; CE
Switching Device
SCR output; Zero voltage switching
Input Impedance
60 kOhm
Thermal Resistance
1.48°C/W
Must Release Voltage
10 V
Protection Technology
Current limiter
Maximum Peak Voltage
600 V
Voltage Drop
<1.6 V on-state AC
Leakage Current
10 mA at off-state
Output Voltage
24...280 V AC
maximum output current
10 A AC
Maximum I²t for fusing
66 A².s 8.3 ms
Control Circuit Voltage
90...280 V AC
Range
Legacy
Switch Function
SPST
Contacts Type and Composition
NO
Input Current Limits
2 to 4 mA at 240 V AC typical
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Local Signalling
for input status 1 LED (green)
Surge Current
120 A 16.6 ms
Network Number of Phases
1 phase
Maximum I²t for fusing
66 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 2 to 4 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
