  7. Solid State Relay, 90 to 280VAC, 10A

This item is Discontinued.

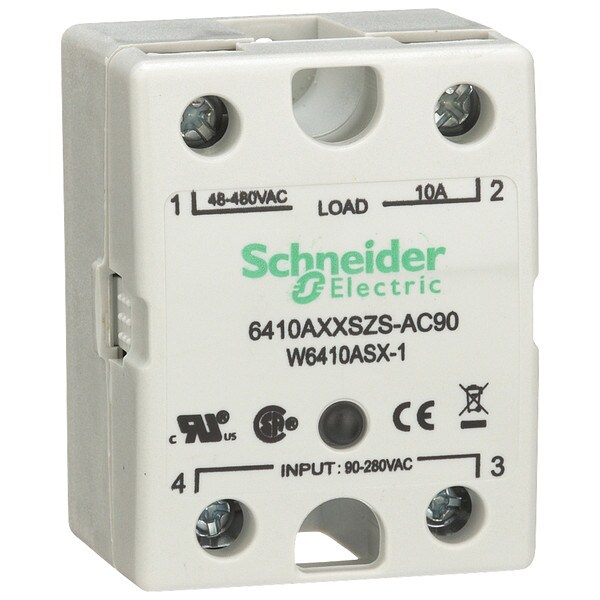

Schneider Electric Solid State Relay, 90 to 280VAC, 10A 6410AXXSZS-AC90

Solid State Relay, 90 to 280VAC, 10A (Discontinued)

  • Mfr # 6410AXXSZS-AC90
  • Zoro # G0840375
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6410AXXSZS-AC90
Zoro #
G0840375
UPC #
-
Country of Origin
Mexico

Dimensions

Body Height - Relay
1.4 in
Overall Height - Relay
1.4 in
Body Depth - Relay
2.3 in
Body Width - Relay
1.74 in
Depth
2.30 in (58.4 mm)
Width
1.85 in (47.1 mm)
Height
1.39 in (35.3 mm)
Body Width
1.85 in
Body Depth
2.29 in
Overall Depth
2.29 in
Body Height
1.38 in

Details

Item
Solid State Relay
Output or Controlled Voltage Range
48 to 480V AC
Mounting
Surface
Input Voltage
90 to 280V AC
Contact Form - Relay
SPST-NO
Item - Relay
Solid State Relay
Turns On At
Zero Cross
Finger Safe
Yes
Max. Output Amps w/Heat Sink
10 A
Case Color
Gray
Input or Control Voltage Range
90 to 280VAC
Max. Output w/Heat Sink
10A
Standards
CE Certified, CSA Certified, UL Listed
Max. Output Amps Without Heat Sink
10.0 A
Input or Control Voltage
90 to 280V AC
Phase
1
Voltage Output
48 to 480VAC
Mounting - Relay
Surface
Relay Turns On At
Zero Crossing
Input Power Consumption (Burden)
0.2 to 1.0VA
Heat Sink
Not Included
Switch Type
SCR
Mounting Style
Panel
Electrical Connection
Screw Clamp
Minimum Operating Temperature
-40 Degrees F
Voltage Type
AC Output
Output Switching Mode
Zero Crossing
Status Indicator
Green LED Indicator
IP Rating
IP20
Insulation Resistance
1,000 megaohm
Switch Component Type
SCR
Current Type
AC
Dielectric Strength
4,000V
Input Current
2 mA; 4 mA
Series
6000 Series
Maximum Output Current without Heat Sink
10 A
Response Time
10 msec
Maximum Operating Temperature
176 Degrees F
Electrical Phase
Single
Output Voltage Range
48 to 530V AC
Weight
3.7 oz
Switch Configuration
Form A
Drop Out Voltage
1.7V DC
Power Factor
1
Maximum Output Current with Heat Sink
10 A
Must Release Voltage
10 V
Leakage Current
10 mA at off-state
DV/dt
500 V/µs off-state at maximum rated voltage
Screw Type
M3.5; M4
Local Signalling
for input status 1 LED (green)
Tightening Torque
10 lb.in for input; 20 lb.in for output
Thermal Resistance
1.48°C/W
Switch Function
SPST
Output Voltage
48...530 V AC
Protection Technology
Current limiter
Control Circuit Voltage
90...280 V AC
maximum output current
10 A AC
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Contacts Type and Composition
NO
Connections Terminals
Input screw clamp terminal, 1; Output screw clamp terminals, 1
Holding Current
40 mA
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Input Impedance
60 kOhm
Surge Current
140 A 16.6 ms
Maximum Peak Voltage
800 V
Maximum I²t for fusing
81 A².s 8.3 ms
Insulating Resistance
1 GΩ
Input Current Limits
2 mA at 120 V AC typical; 4 mA at 240 V AC typical
Network Number of Phases
1 phase
Switching Device
SCR output; Zero voltage switching
Range
Legacy
Voltage Drop
<1.7 V on-state AC
Product Certifications
UL; CSA; CE
Maximum I²t for fusing
81 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 2 mA; 4 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 530V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
