  7. Solid State Relay, 90 to 280VAC, 10A

This item is Discontinued.

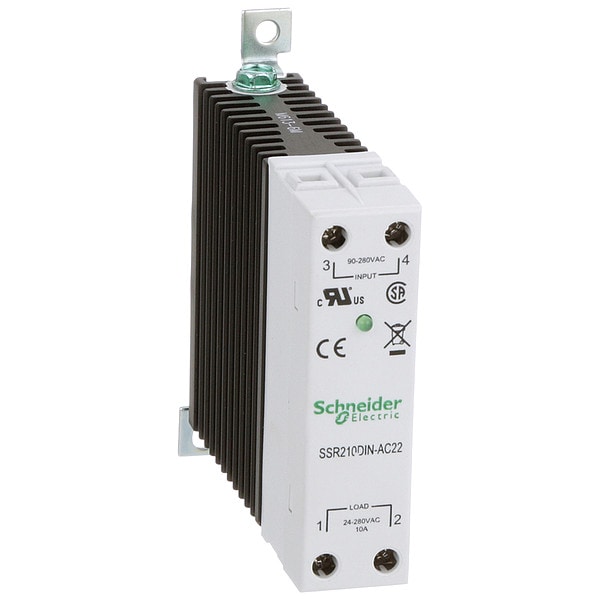

Schneider Electric Solid State Relay, 90 to 280VAC, 10A SSR210DIN-AC22

Solid State Relay, 90 to 280VAC, 10A (Discontinued)

  • Mfr # SSR210DIN-AC22
  • Zoro # G2764377
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SSR210DIN-AC22
Zoro #
G2764377
UPC #
-
Country of Origin
Mexico

Dimensions

Body Width - Relay
3.15 in
Body Depth - Relay
0.88 in
Overall Height - Relay
3.8 in
Body Height - Relay
3.8 in
Depth
3.15 in (80 mm)
Height
3.85 in (97.7 mm)
Width
0.88 in (22.4 mm)
Body Width
0.88 in
Overall Depth
3.85 in
Body Depth
3.8 in
Body Height
3.15 in

Details

Item
Solid State Relay
Mounting - Relay
DIN Rail, Surface
Case Color
Gray/Black
Heat Sink
Integral
Max. Output Amps w/Heat Sink
10 A
Turns On At
Zero Cross
Relay Turns On At
Zero Crossing
Mounting
DIN or Flange
Input Power Consumption (Burden)
0.6 to 1.1VA
Standards
CE Certified, CSA Certified
Phase
1
Finger Safe
Yes
Output or Controlled Voltage Range
24 to 280V AC
Switch Type
SCR
Contact Form - Relay
SPST-NO
Input or Control Voltage
90 to 280V AC
Includes
Integral Heat Sink
Voltage Output
24 to 280VAC
Input Voltage
90 to 280V AC
Max. Output Amps Without Heat Sink
10.0 A Integral Heat Sink
Item - Relay
Solid State Relay
Input or Control Voltage Range
90 to 280VAC
Max. Output w/Heat Sink
10A
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
Maximum Switching Voltage
18V AC
Voltage Type
AC Output
Status Indicator
Green LED Indicator
Maximum Output Current without Heat Sink
10 A
Switch Component Type
SCR
Series
SSRDIN Series
Current Type
AC
Minimum Switching Voltage
110V AC
Weight
9.88 oz
Output Switching Mode
Zero Crossing
Switch Configuration
Form A
Response Time
10 msec
Minimum Operating Temperature
-40 Degrees F
Drop Out Voltage
1.6V DC
Maximum Operating Temperature
176 Degrees F
Input Current
5 mA
Output Voltage Range
24 to 280V AC
Electrical Phase
Single
Maximum Output Current with Heat Sink
10 A
Voltage Drop
<1.6 V on-state
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Local Signalling
for input status 1 LED (green)
Mounting Support
Panel; DIN rail
Leakage Current
10 mA at off-state
Connections Terminals
Input screw AWG 10); Output screw AWG 10)
Maximum I²t for fusing
60 A².s 8.3 ms
Product Certifications
CSA; CE
Network Number of Phases
1 phase
DV/dt
500 V/µs off-state maximum
Switching Device
SCR output; Zero voltage switching
Contacts Type and Composition
NO
Output Voltage
24...280 V AC
Maximum Peak Voltage
600 V
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Surge Current
120 A 16.6 ms
Switching Voltage
110 V AC turn-on; 18 V AC turn-off
Switch Function
SPST
Input Current Limits
5 mA at 240 V AC typical
Tightening Torque
0.6...0.7 N.m for input; 0.6...0.7 N.m for output
Range
Legacy
Maximum I²t for fusing
60 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 5 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, CSA Certified, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel, Switch Configuration Form A, Voltage Type AC Output
