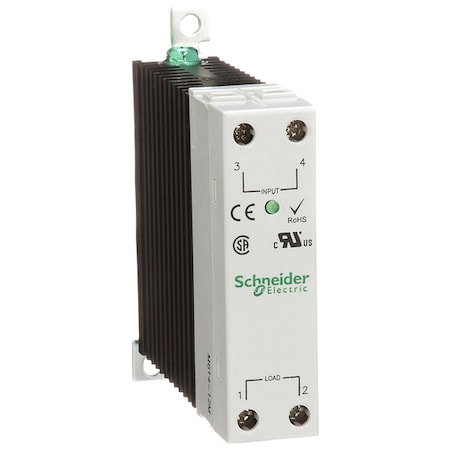

Schneider Electric Solid State Relay, 90 to 280VAC, 10A SSR610DIN-AC22

Solid State Relay, 90 to 280VAC, 10A (Discontinued)

  • Mfr # SSR610DIN-AC22
  • Zoro # G3365214
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SSR610DIN-AC22
Zoro #
G3365214
UPC #
-
Country of Origin
Mexico

Dimensions

Body Height - Relay
3.8 in
Body Width - Relay
3.15 in
Body Depth - Relay
0.88 in
Overall Height - Relay
3.8 in
Depth
3.15 in (80 mm)
Width
0.88 in (22.4 mm)
Height
3.85 in (97.7 mm)
Body Height
3.15 in
Body Depth
3.8 in
Overall Depth
3.85 in
Body Width
0.88 in

Details

Item
Solid State Relay
Mounting
DIN or Flange
Input Power Consumption (Burden)
0.6 to 1.1VA
Finger Safe
Yes
Phase
1
Output or Controlled Voltage Range
48 to 600V AC
Voltage Output
48 to 600VAC
Item - Relay
Solid State Relay
Includes
Integral Heat Sink
Max. Output Amps w/Heat Sink
10 A
Switch Type
SCR
Turns On At
Zero Cross
Input or Control Voltage
90 to 280V AC
Relay Turns On At
Zero Crossing
Input or Control Voltage Range
90 to 280VAC
Max. Output w/Heat Sink
10A
Mounting - Relay
DIN Rail, Surface
Case Color
Gray/Black
Max. Output Amps Without Heat Sink
10.0 A Integral Heat Sink
Heat Sink
Integral
Standards
CE Certified, CSA Certified
Contact Form - Relay
SPST-NO
Input Voltage
90 to 280V AC
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
Maximum Operating Temperature
176 Degrees F
Output Voltage Range
48 to 660V AC
Voltage Type
AC Output
Current Type
AC
Series
SSRDIN Series
Status Indicator
Green LED Indicator
Maximum Output Current with Heat Sink
10 A
Minimum Switching Voltage
110V AC
Weight
9.88 oz
Electrical Phase
Single
Minimum Operating Temperature
-40 Degrees F
Maximum Switching Voltage
18V AC
Drop Out Voltage
1.6V DC
Input Current
5 mA
Maximum Output Current without Heat Sink
10 A
Switch Configuration
Form A
Output Switching Mode
Zero Crossing
Response Time
10 msec
Switch Component Type
SCR
Voltage Drop
<1.6 V on-state
Connections Terminals
Input screw AWG 10); Output screw AWG 10)
Maximum Peak Voltage
1200 V
Switching Device
SCR output; Zero voltage switching
Range
Legacy
Ambient Air Temperature for Operation
-40 to 176°F (-40 to 80°C)
Product Certifications
CSA; CE
Switch Function
SPST
Ambient Air Temperature for Storage
-40 to 257°F (-40 to 125°C)
Switching Voltage
110 V AC turn-on; 18 V AC turn-off
Tightening Torque
0.6...0.7 N.m for input; 0.6...0.7 N.m for output
Contacts Type and Composition
NO
Network Number of Phases
1 phase
Input Current Limits
5 mA at 240 V AC typical
Output Voltage
48...660 V AC
Leakage Current
1 mA at off-state
DV/dt
500 V/µs off-state maximum
Maximum I²t for fusing
60 A².s 8.3 ms
Surge Current
120 A 16.6 ms
Local Signalling
for input status 1 LED (green)
Mounting Support
Panel; DIN rail
Maximum I²t for fusing
60 A².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 5 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 660V AC, Standards CE Certified, CSA Certified, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel, Switch Configuration Form A, Voltage Type AC Output
